AUO A027DN04 V8 hifadhidata, vipimo, hisa, programu www.looklcd-mk.com
LookLCD LookLCD

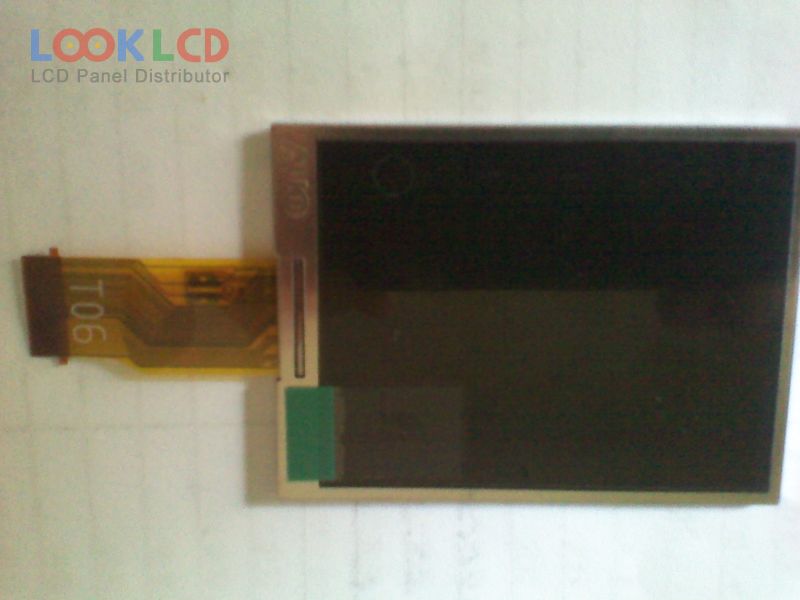

A027DN04 V8

A027DN04 V8
A027DN04 V8 thumb
Chapa
AUO
Ukubwa
2.7
Maombi
DSC
Azimio
320×240
Muundo
LCM
Mwangaza
400
CR
400:1
Rangi
16.7M
Mwangaza nyuma
WLED
Kiolesura
Serial RGB
In Stock
9441
Vipimo

Nambari ya Sehemu A027DN04 V8
ChapaAUO
Ukubwa2.7
MaombiDSC
Azimio320×240
MuundoLCM
Mwangaza400
CR400:1
Rangi16.7M
Mwangaza nyumaWLED
KiolesuraSerial RGB
chapa ya paneliAUO
mfano wa paneliA027DN04 V8
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli2.7 inch
azimio320(RGB)×240 , QVGA
hali ya kuonyeshaTN, Normally White, Transmissive
eneo la kazi54×40.5 mm
muhtasari63.5×46.6×2.4 mm
usoHard coating
mwangaza400 cd/m² (Typ.)
uwiano wa utofautishaji400:1 (Typ.)
kuonyesha rangi16.7M (8-bit)
wakati wa majibu10/25 (Typ.)(Tr/Td)
angle ya kutazama60/60/50/60 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taa2S1PWLEDWithout Driver
kiolesura cha isharaSerial RGB (8-bit) + SPI, CCIR601/656, 41 pins
voltage ya pembejeo3.3/1.8V (Typ.)(VDD/VDDIO)
maombiDSC
Mfano wa Familia
A027DN01 VB AUO 2.7 320×240
A027DN01 VR AUO 2.7 320×240
A027DN03 V4 AUO 2.7 320×240
A027DN03 V5 AUO 2.7 320×240
A027DN03 V8 AUO 2.7 320×240
A027DN03 V9 AUO 2.7 320×240
A027DN04 V3 AUO 2.7 320×240
A027DN04 V4 AUO 2.7 320×240
A027DTN01.2 AUO 2.7 320×240
A027DTN01.3 AUO 2.7 320×240
