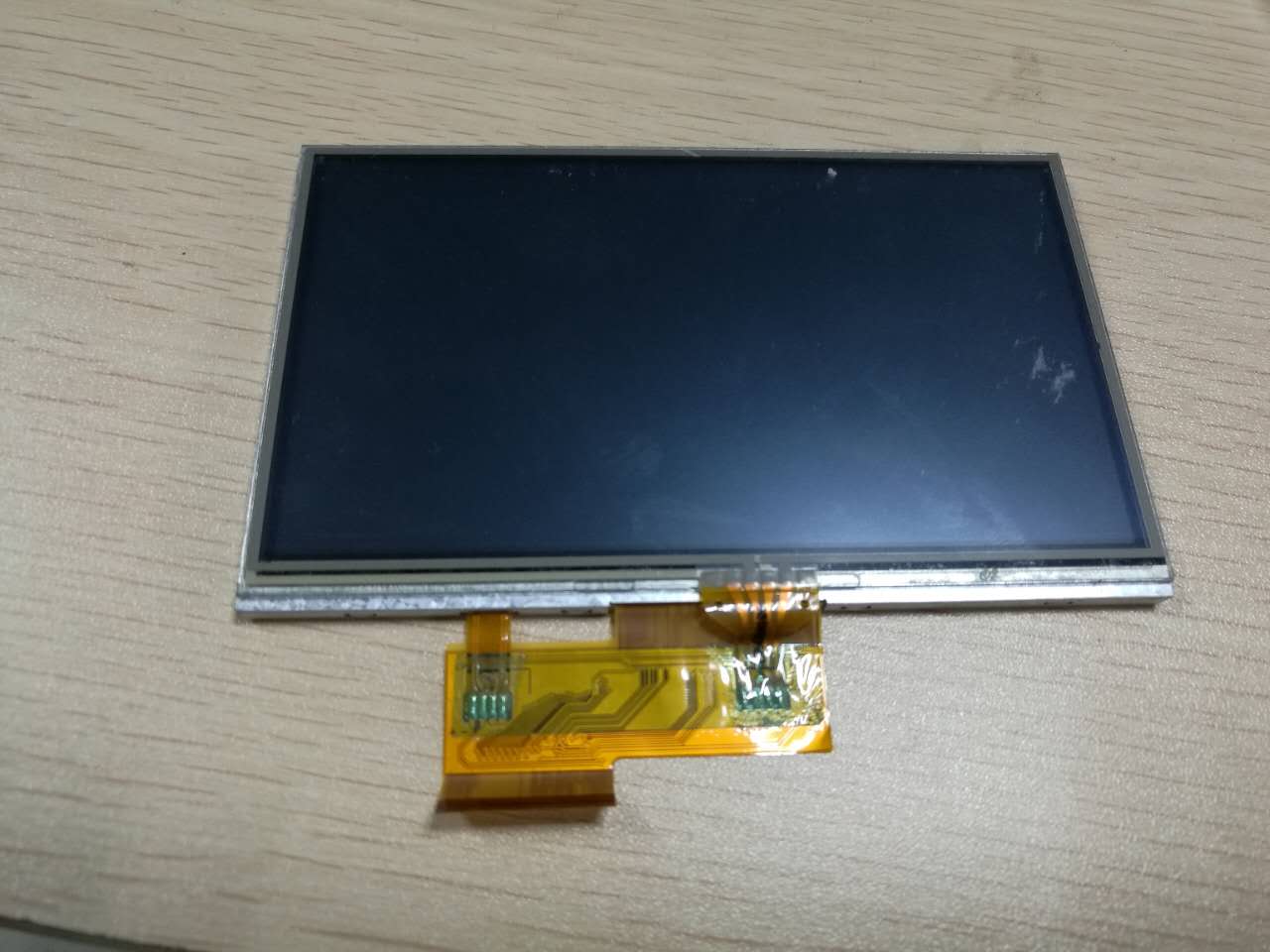

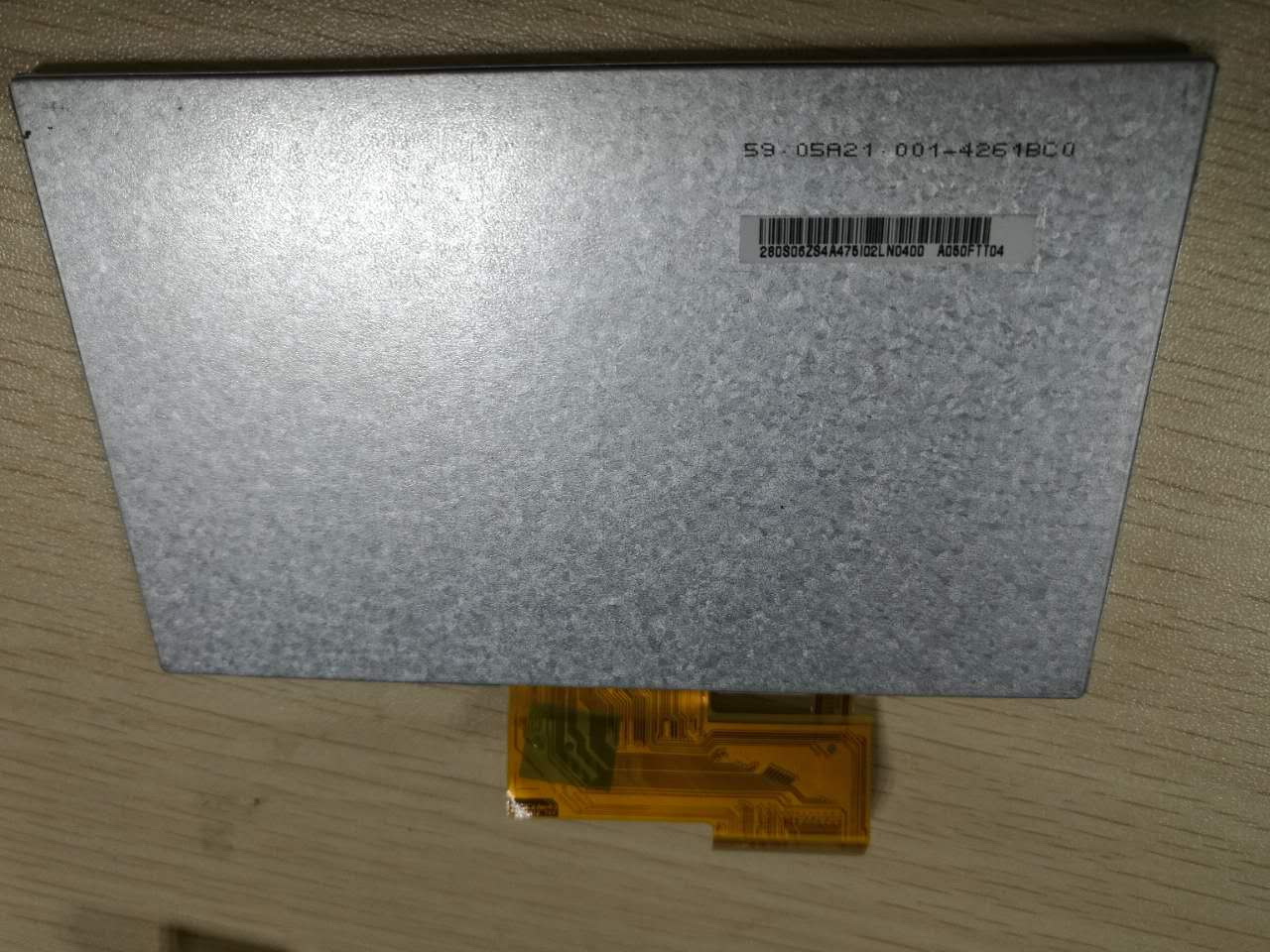

| Nambari ya Sehemu | A050FTT04.0 |
| Chapa | AUO |
| Ukubwa | 5.0 |
| Maombi | Portable Navigation |
| Azimio | 480×272 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | Parallel |
| chapa | AUO |
| ukubwa wa diagonal | 5.0 inch |
| muundo wa pixel | 480(RGB)×272 [WQVGA] 109PPI |
| eneo la kazi | 110.88(H)×62.832(V) mm |
| eneo la bezel | - |
| mwangaza | 400 cd/m² (Typ.) |
| tazama mwelekeo | 6 o'clock |
| angle ya kutazama | 70/70/40/60 (Typ.)(CR≥10) |
| rangi ya msaada | 262K 50% NTSC |
| uzito | 75g |
| kiwango cha fremu | - |
| aina ya kiolesura | Parallel RGB (1 ch, 6-bit) + SPI , 67 pins FPC |
| usambazaji wa nguvu | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| mazingira | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| mfano | A050FTT04.0 |
| aina | a-Si TFT-LCD , LCM |
| usanidi | RGB Vertical Stripe |
| muhtasari dim. | 120.73(H)×75.83(V) ×4.47(D) mm |
| matibabu | Hard coating (3H) |
| uwiano wa utofautishaji | 500:1 (Typ.) (TM) |
| wakati wa majibu | 7/23 (Typ.)(Tr/Td) |
| hali ya uendeshaji | TN, Normally White, Transmissive |
| chanzo cha mwanga | WLED [6S2P] , 10K hours , W/O Driver |
| iliyoundwa kwa ajili ya | Portable Navigation MP3 PMP |
| jopo la kugusa | 4-wire Resistive Touch |
