| Nambari ya Sehemu | AA084SA01 |
| Chapa | Mitsubishi |
| Ukubwa | 8.4 |
| Maombi | IA |
| Azimio | 800×600 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 600:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | Mitsubishi |

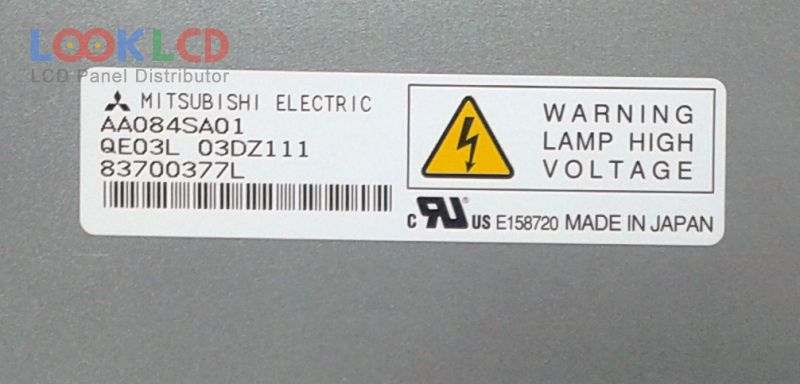

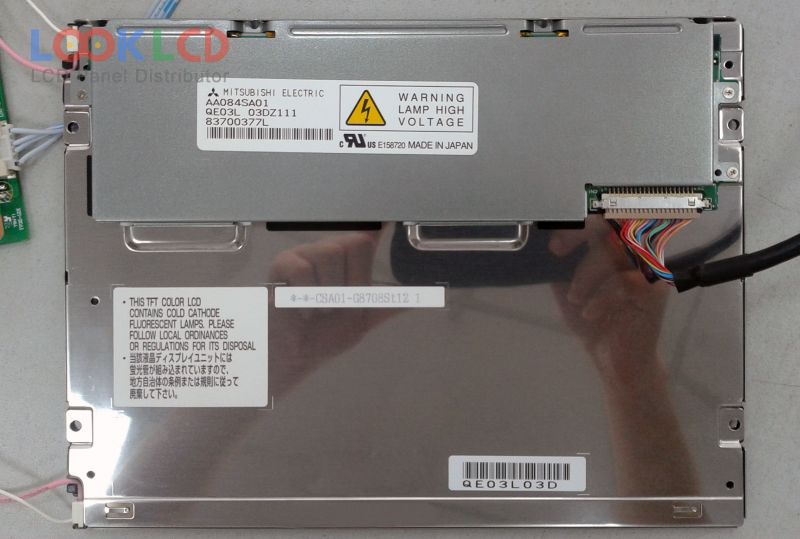

| mfano wa paneli | AA084SA01 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.4 inch |
| azimio | 800(RGB)×600 , SVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 170.4×127.8 mm |
| muhtasari | 199.5×149 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| wakati wa majibu | 4/12 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| AA084SB11 | Mitsubishi | 8.4 | 800×600 |
| AA084SC01 | Mitsubishi | 8.4 | 800×600 |
| AA084SD01 | Mitsubishi | 8.4 | 800×600 |
| AA084VB01 | Mitsubishi | 8.4 | 640×480 |
| AA084VC03 | Mitsubishi | 8.4 | 640×480 |
| AA084VD02 | Mitsubishi | 8.4 | 640×480 |
| AA084VG01 | Mitsubishi | 8.4 | 640×480 |
| AA084XB01 | Mitsubishi | 8.4 | 1024×768 |
| AA084XB11 | Mitsubishi | 8.4 | 1024×768 |
| AA084XE11 | Mitsubishi | 8.4 | 1024×768 |
| KS3224ASTT-FW-X20 | Kyocera | 5.7 | 320×240 |
| LM-EH53-22NTK | SANYO | 10.4 | 640×480 |
| LM64P723 | SHARP | 9.4 | 640×480 |
| LQ190N1LW01 | SHARP | 19.0 | 1680×1050 |
| NL10276BC20-18F | NLT | 10.4 | 1024×768 |
| NL10276BC24-21 | NLT | 12.1 | 1024×768 |
| OEL9M0073-Y-E | Other | 1.0 | 128×64 |
| PD050SX2 | E Ink | 5.0 | 800×600 |
| T-51750GD065J-FW-ADN | Kyocera | 6.5 | 640×480 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
