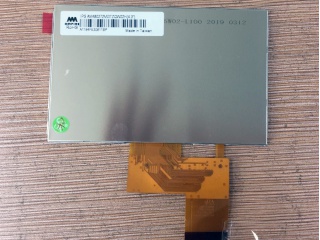

| Nambari ya Sehemu | AM-480272MGTZQW-02H |
| Chapa | AMPIRE |
| Ukubwa | 4.3 |
| Maombi | Industrial Outdoor H |
| Azimio | 480×272 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 5S3P |
| Kiolesura | Parallel |
| chapa ya paneli | AMPIRE |
| mfano wa paneli | AM-480272MGTZQW-02H |
| saizi ya paneli | 4.3" |
| aina ya paneli | a-Si TFT-LCD, LCM |
| azimio | 480(RGB)×272, WQVGA, 128PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 95.04(W)×53.856(H) mm |
| ufunguzi wa bezel | 97.6(W)×56.0(H) mm |
| saizi ya muhtasari | 105.6(W)×67.2(H) ×3.1(D) mm |
| uso | - |
| mwangaza | 1000 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya kuonyesha | IPS, Normally Black, Transmissive |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| kuonyesha rangi | 16.7M 51% NTSC |
| aina ya taa | 5S3P WLED , Without Driver |
| masafa | 60Hz |
| skrini ya kugusa | Without |
| uzito wa paneli | - |
| maombi | Industrial Outdoor High Brightness Automotive Display |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
