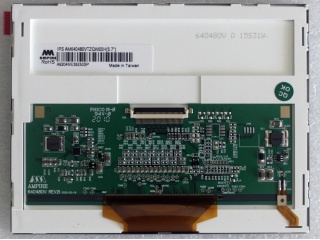

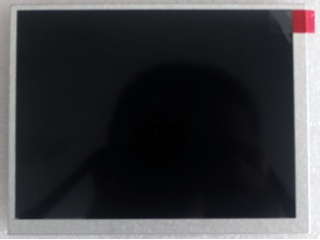

| Nambari ya Sehemu | AM-640480VTZQW-00H |
| Chapa | AMPIRE |
| Ukubwa | 5.7 |
| Maombi | Industrial |
| Azimio | 640×480 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 1200:1 |
| Rangi | 262K |
| Mwangaza nyuma | 4S7P |
| Kiolesura | CMOS |
| chapa ya paneli | AMPIRE |
| saizi ya paneli | 5.7" |
| azimio | 640(RGB)×480, VGA, 141PPI |
| eneo la maonyesho | 115.2(W)×86.4(H) mm |
| saizi ya muhtasari | 127(W)×98.43(H) ×6.9(D) mm |
| mwangaza | 500 cd/m² (Typ.) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| mwonekano bora zaidi | Symmetry |
| kuonyesha rangi | 262K 63% NTSC |
| masafa | 60Hz |
| uzito wa paneli | - |
| kiolesura cha ishara | CMOS (1 ch, 6-bit) , 40 pins Connector |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| mfano wa paneli | AM-640480VTZQW-00H |
| aina ya paneli | a-Si TFT-LCD , LCM |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | 118.0(W)×89.2(H) mm |
| uso | - |
| uwiano wa utofautishaji | 1200:1 (Typ.) (TM) |
| hali ya kuonyesha | IPS, Normally Black, Transmissive |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| aina ya taa | 4S7P WLED , 50K hours , With LED Driver |
| skrini ya kugusa | Without |
| maombi | Industrial |
| AM-640480G2TNQW-00H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-31H | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-31H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-A0H | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| AM-640480GFTNQW-T01H-L | AMPIRE | 5.7 | 640×480 |
| AM-640480GJTNQW-TA0H | AMPIRE | 5.7 | 640×480 |
| LQ057AC111 | Other | 5.7 | 320×240 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
