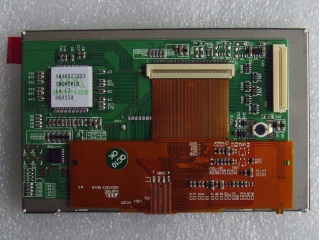

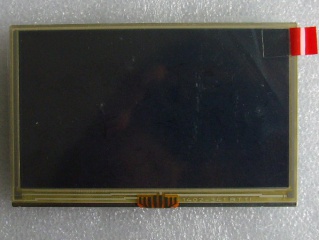

| Nambari ya Sehemu | AM480272H3TMQW-TW1H |
| Chapa | AMPIRE |
| Ukubwa | 4.3 |
| Maombi | Industrial |
| Azimio | 480×272 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 250:1 |
| Rangi | 65K/262K |
| Mwangaza nyuma | WLED |
| Kiolesura | 8/9/16/18-bit |
| chapa | AMPIRE |
| mfano | AM480272H3TMQW-TW1H |
| ukubwa wa diagonal | 4.3 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 480(RGB)×272 [WQVGA] 128PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 95.04(H)×53.856(V) mm |
| muhtasari dim. | 105.5(H)×67.2(V) ×7.91(D) mm |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 250:1 (Typ.) (TM) |
| tazama mwelekeo | 6 o'clock |
| wakati wa majibu | 15/35 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/35/55 (Typ.)(CR≥10) |
| hali ya uendeshaji | TN, Normally White, Transmissive |
| rangi ya msaada | 65K/262K 52% NTSC |
| chanzo cha mwanga | WLED [7S1P] , 15K hours , W/O Driver |
| uzito | TBD |
| iliyoundwa kwa ajili ya | Industrial |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | 4-wire Resistive Touch |
| aina ya kiolesura | 8/9/16/18-bit 6800/8080 parallel , 40 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
