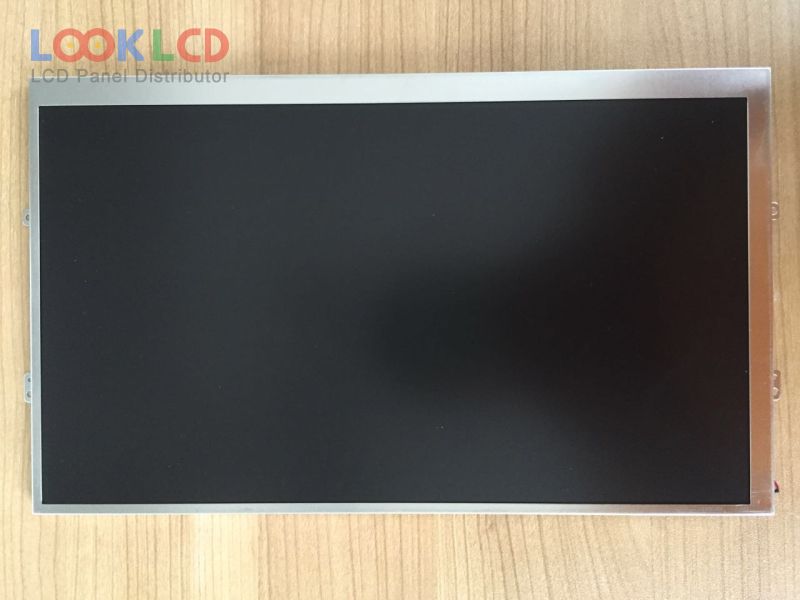

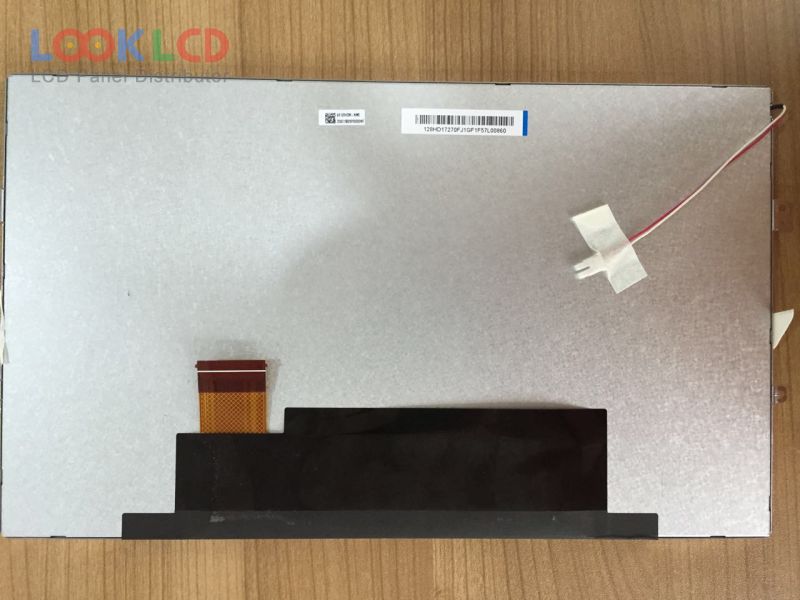

| Nambari ya Sehemu | AV128HDM-NW0 |
| Chapa | BOE |
| Ukubwa | 12.8 |
| Maombi | CNS |
| Azimio | 1280×720 |
| Muundo | LCM |
| Mwangaza | 500 |
| CR | 900:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | BOE |
| mfano wa paneli | AV128HDM-NW0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 12.8 inch |
| azimio | 1280(RGB)×720 , WXGA |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 283.2×159.3 mm |
| muhtasari | 300.8×179.5×8 mm |
| uso | |
| mwangaza | 500 cd/m² (Typ.) |
| uwiano wa utofautishaji | 900:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193172% |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4S10PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 50 pins |
| voltage ya pembejeo | 3.3/11.5/22/-9V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | CNS |
| AV128HDM-NW0 | BOE | 12.8 | 1280×720 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| G070Y2-L01 | Innolux | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| LA070WV6-SD01 | LG Display | 7.0 | 800×480 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LB070WV3-SD02 | LG Display | 7.0 | 800×480 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
