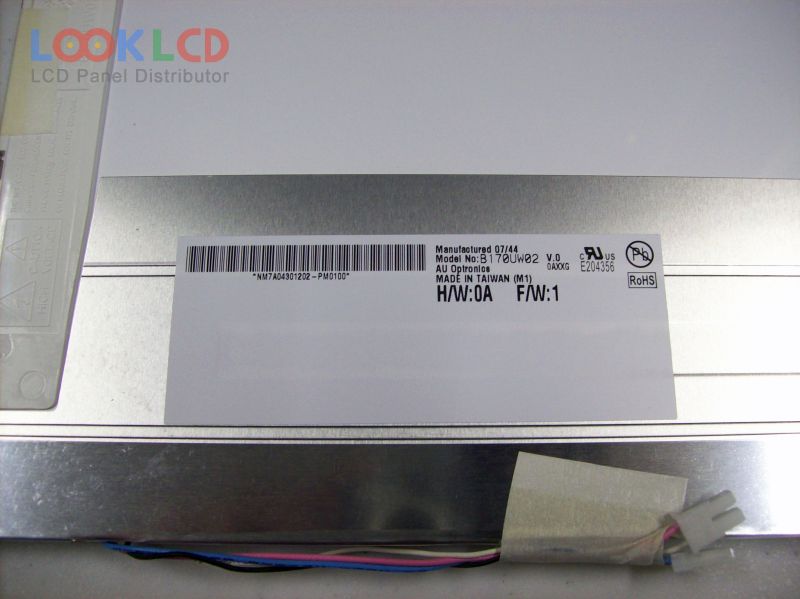

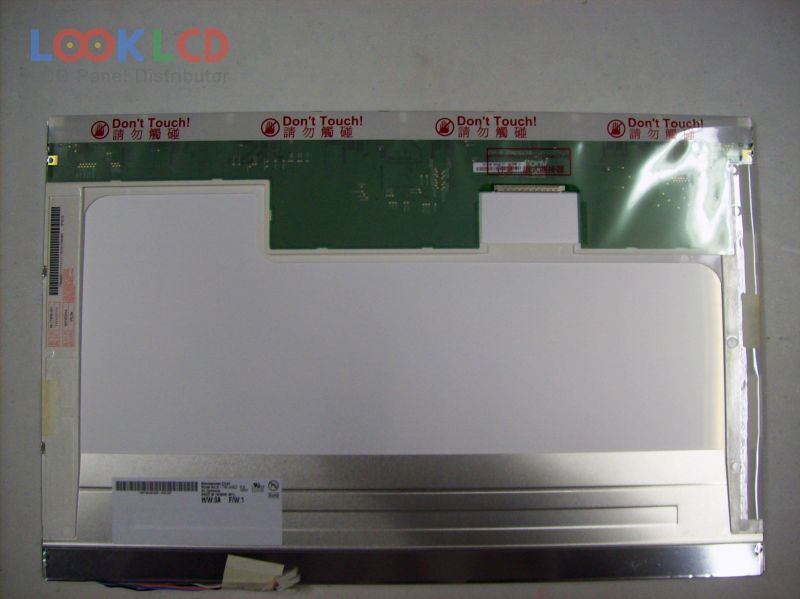

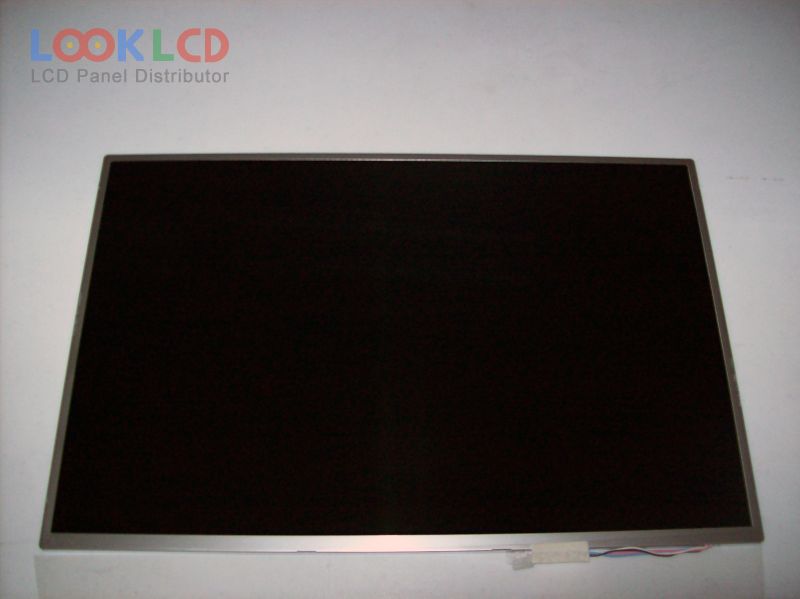

| Nambari ya Sehemu | B170UW02 V0 |
| Chapa | AUO |
| Ukubwa | 17.0 |
| Maombi | NBPC |
| Azimio | 1920×1200 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | B170UW02 V0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 17.0 inch |
| azimio | 1920(RGB)×1200 , WUXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 367.2×229.5 mm |
| muhtasari | 382.2×247.5×7 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Glare (Haze 0%), Hard coating (4H) |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193172% |
| wakati wa majibu | 8 (Typ.)(Tr+Td) |
| angle ya kutazama | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFL |
| kiolesura cha ishara | LVDS (2 ch, 6-bit), 30 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NBPC |
