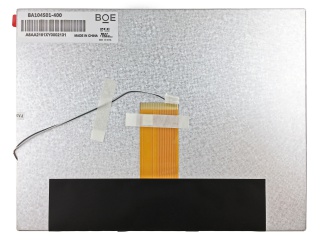

| Nambari ya Sehemu | BA104S01-400 |
| Chapa | BOE |
| Ukubwa | 10.4 |
| Maombi | Digital Photo Frame |
| Azimio | 800×600 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | 3S12P |
| Kiolesura | Parallel |
| chapa ya paneli | BOE |
| saizi ya paneli | 10.4" |
| azimio | 800(RGB)×600, SVGA, 96PPI |
| eneo la maonyesho | 211.2(W)×158.4(H) mm |
| saizi ya muhtasari | 228.4(W)×175.4(H) mm |
| mwangaza | 350 cd/m² (Typ.) |
| angle ya kutazama | 80/80/65/75 (Typ.)(CR≥10) |
| mwonekano bora zaidi | - |
| kuonyesha rangi | 262K/16.7M 55% NTSC |
| masafa | 60Hz |
| uzito wa paneli | TBD |
| kiolesura cha ishara | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| voltage ya pembejeo | 3.3/9/18/-8V (Typ.)(VCC/AVDD/VGH/VGL) |
| mazingira | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| mfano wa paneli | BA104S01-400 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | 214.4(W)×161.6(H) mm |
| uso | Antiglare |
| uwiano wa utofautishaji | 800:1 (Typ.) (TM) |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| aina ya taa | 3S12P WLED , 20K hours , Without Driver |
| skrini ya kugusa | Without |
| maombi | Digital Photo Frame Home Appliance |
