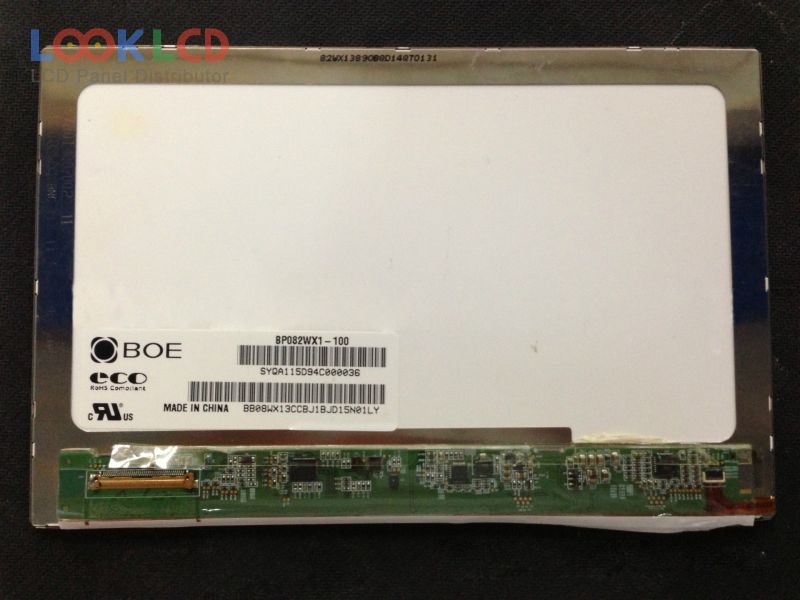

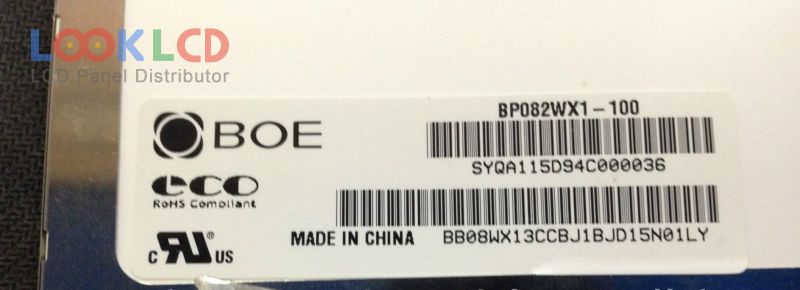

| Nambari ya Sehemu | BP082WX1-100 |
| Chapa | BOE |
| Ukubwa | 8.2 |
| Maombi | PAD |
| Azimio | 1280×800 |
| Muundo | LCM |
| Mwangaza | 450 |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | BOE |
| mfano wa paneli | BP082WX1-100 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.2 inch |
| azimio | 1280(RGB)×800 , WXGA |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 176.64×110.4 mm |
| muhtasari | 187.84×122.3 mm |
| uso | Hard coating (3H), Antireflection |
| mwangaza | 450 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193150% |
| wakati wa majibu | 24 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3 stringsWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
| BP082WX1-100 | BOE | 8.2 | 1280×800 |
| SX21V001-Z4A | KOE | 8.2 | 640×480 |
| B080XAN02.0 | AUO | 7.9 | 768×1024 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| LD080WX2-SMN1 | LG Display | 8.0 | 800×1280 |
| LP097QX1-SPC2 | LG Display | 9.7 | 2048×1536 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| LQ104X2LX05B | SHARP | 10.4 | 1024×768 |
| LT121DKXBF00 | TOSHIBA | 12.1 | 1280×800 |
| P101KDA-AP1 | Innolux | 10.1 | 1200×1920 |
| YX101GL-01A | SEBO | 10.1 | 1280×800 |
