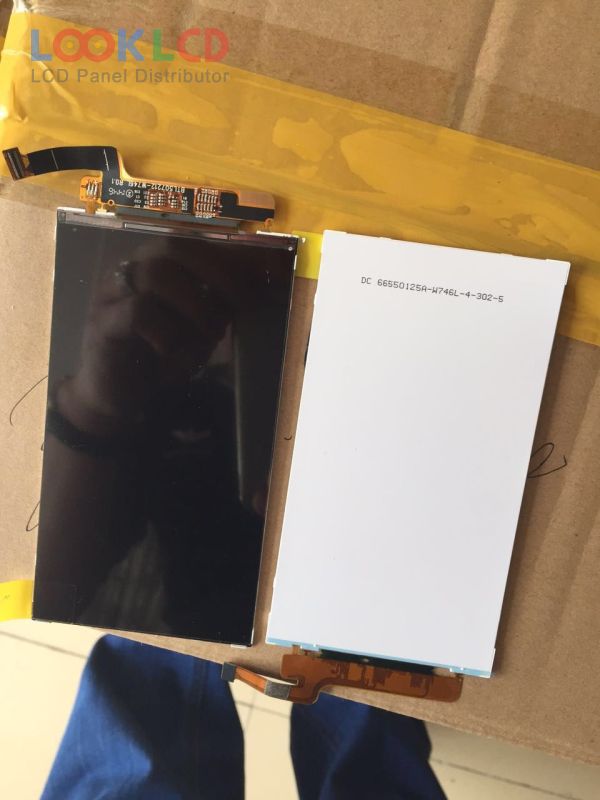

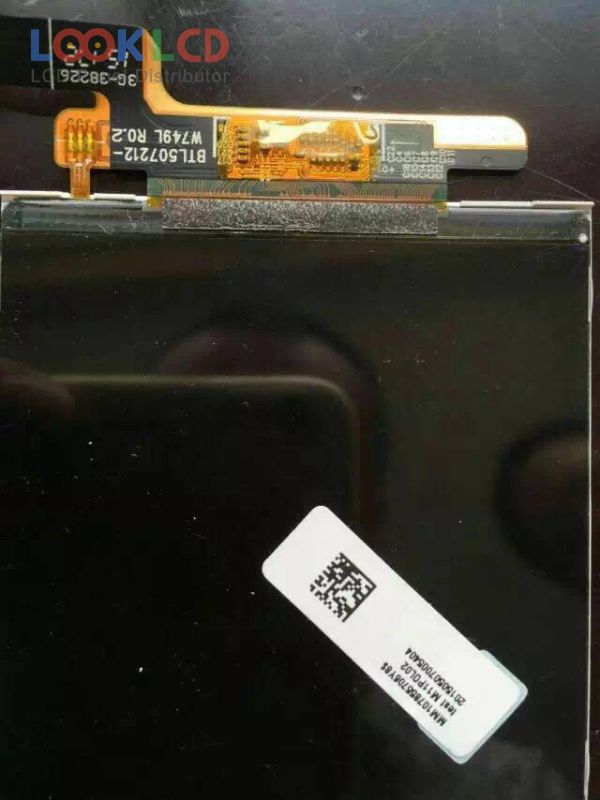

| Nambari ya Sehemu | BTL507212-W746L |
| Chapa | BOE |
| Ukubwa | 5.0 |
| Maombi | MPH |
| Azimio | 720×1280 |
| Muundo | LCM |
| Mwangaza | |
| CR | 700:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | MIPI |
| chapa ya paneli | BOE |
| mfano wa paneli | BTL507212-W746L |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 5.0 inch |
| azimio | 720(RGB)×1280 , WXGA |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 62.1×110.4 mm |
| uso | |
| mwangaza | |
| uwiano wa utofautishaji | 700:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193170% |
| wakati wa majibu | 35 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDWithout Driver |
| kiolesura cha ishara | MIPI (4 data lanes), 27 pins |
| voltage ya pembejeo | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| maombi | MPH |
