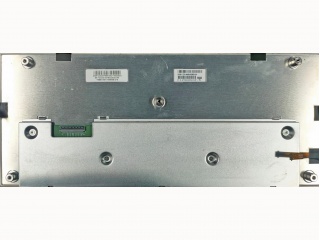

| Nambari ya Sehemu | C123HAN02.5 |
| Chapa | AUO |
| Ukubwa | 12.3 |
| Maombi | Automotive Display |
| Azimio | 1920×720 |
| Muundo | LCM, a-Si TFT-LCD |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 8S4P |
| Kiolesura | |
| mtengenezaji | AUO |
| jina la mfano | C123HAN02.5 |
| ukubwa wa skrini | 12.3 inch |
| aina ya skrini | LCM, a-Si TFT-LCD |
| nambari ya pixel | 1920(RGB)×720 167PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 292.032 × 109.512 (H×V) |
| muhtasari(mm) | 310.75 × 129.86 × 16.23 (H×V×D) |
| eneo la bezel(mm) | 293.94 × 111.42 (H×V) |
| matibabu | Antiglare |
| mwangaza | 600 cd/m² (Min.) |
| uwiano wa utofautishaji | 1000 : 1 (Typ.) (TM) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10) |
| majibu | 15/45 (Typ.)(Tr/Td) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | AHVA, Normally Black, Transmissive |
| kina cha rangi | 16.7M 75% NTSC |
| backlight | 8S4P WLED , 10K hours , No Driver |
| wingi | 570±57g |
| kutumika kwa | Automotive Display |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
