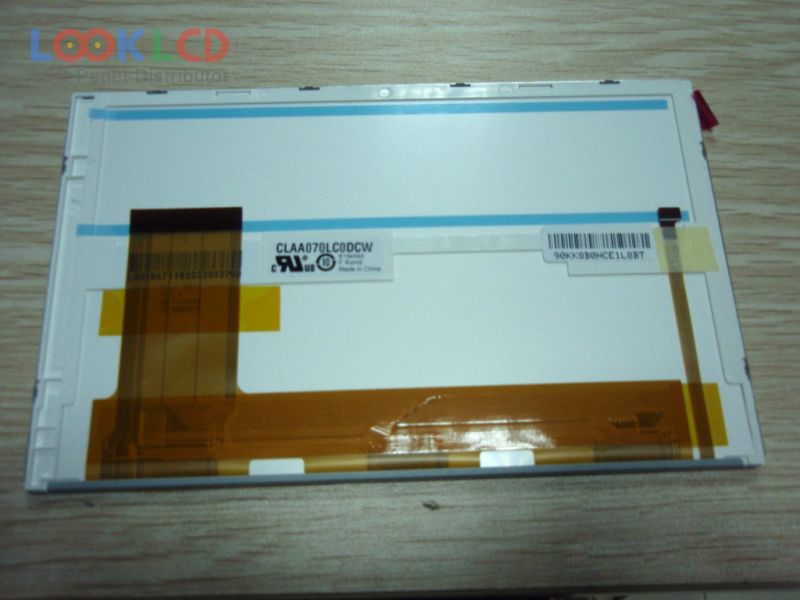

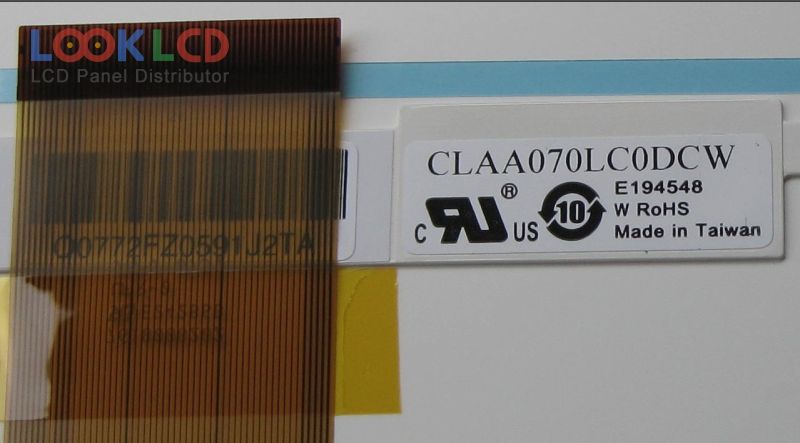

| Nambari ya Sehemu | CLAA070LC0DCW |
| Chapa | CPT |
| Ukubwa | 7.0 |
| Maombi | MP4 |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 220 |
| CR | 400:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | CPT |
| mfano wa paneli | CLAA070LC0DCW |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 165×104 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 220 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 20 (Typ.)(Tr+Td) |
| angle ya kutazama | 70/70/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S5PWLEDWithout Driver |
| kiolesura cha ishara | TTL (1 ch, 6-bit), 54 pins |
| voltage ya pembejeo | 3.3/9.6V (Typ.)(VCC/AVDD) |
| rohs: | |
| maombi | MP4 |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| HJ070NA-01U | Innolux | 7.0 | 1024×600 |
| HSD070PFW3-D00 | HannStar | 7.0 | 1024×600 |
| HSD089IFW1-B00 | HannStar | 8.9 | 1024×600 |
| LB070WV6-TD08 | LG Display | 7.0 | 800×480 |
| LMS700KF01-001 | Samsung | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
