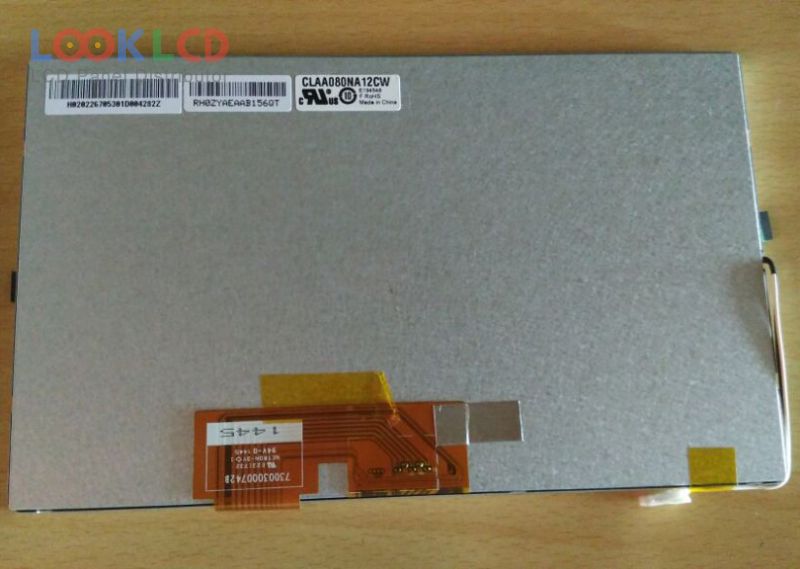

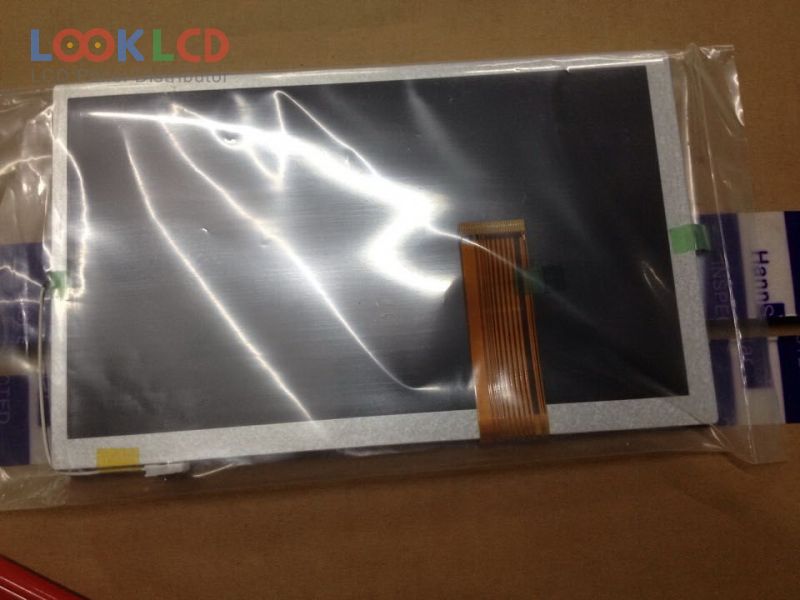

| Nambari ya Sehemu | CLAA080NA12 CW |
| Chapa | CPT |
| Ukubwa | 8.0 |
| Maombi | CNS |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 600 |
| CR | 800:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | CPT |
| mfano wa paneli | CLAA080NA12 CW |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 176.64×99.36 mm |
| muhtasari | 192.8×116.9×6.7 mm |
| uso | Antiglare |
| mwangaza | 600 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 75/75/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S13PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 40 pins |
| voltage ya pembejeo | 3.3/9.6/21.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maombi | CNS |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| CLAA080WQ05 | CPT | 8.0 | 800×1280 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| A070FW01 | AUO | 7.0 | 480×234 |
| AT056TN52 V.4 | Innolux | 5.6 | 640×480 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| LA092WV1-SD01 | LG Display | 9.2 | 800×480 |
| LB048Q01-TD01 | LG Display | 4.8 | 240×257 |
| LB070WQ4-TM06 | LG Display | 7.0 | 480×234 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| PA080XS2 | E Ink | 7.9 | 480×468 |
