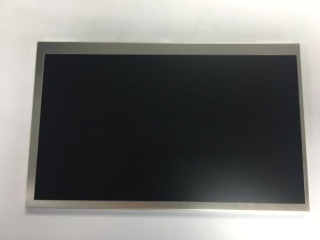

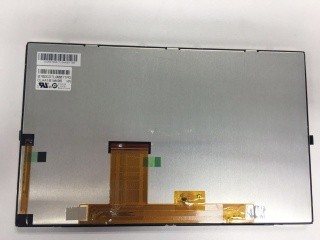

| Nambari ya Sehemu | CLAA101WK06 XN |
| Chapa | CPT |
| Ukubwa | 10.1 |
| Maombi | Automotive Display |
| Azimio | 1280×720 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 900:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | 6S5P |
| Kiolesura | LVDS |
| chapa ya paneli | CPT |
| mfano wa paneli | CLAA101WK06 XN |
| saizi ya paneli | 10.1" |
| aina ya paneli | a-Si TFT-LCD, LCM |
| azimio | 1280(RGB)×720, WXGA, 144PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 224.64(W)×126.36(H) mm |
| ufunguzi wa bezel | 227.64(W)×129.36(H) mm |
| saizi ya muhtasari | 238.8(W)×148.05(H) ×8.7(D) mm |
| uso | Antiglare (Haze 25%), Hard coating (3H) |
| mwangaza | 600 cd/m² (Typ.) |
| uwiano wa utofautishaji | 900:1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya kuonyesha | HFFS, Normally Black, Transmissive |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| kuonyesha rangi | 262K/16.7M 70% NTSC |
| aina ya taa | 6S5P WLED , 30K hours , Without Driver |
| masafa | 60Hz |
| skrini ya kugusa | Without |
| uzito wa paneli | 430g (Typ.) |
| maombi | Automotive Display |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| voltage ya pembejeo | 3.3/12.4/24.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| mazingira | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
