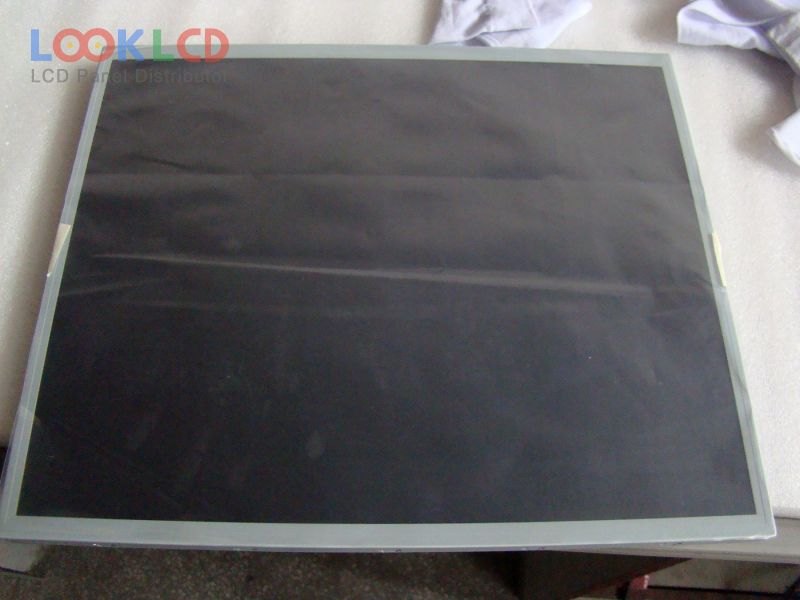

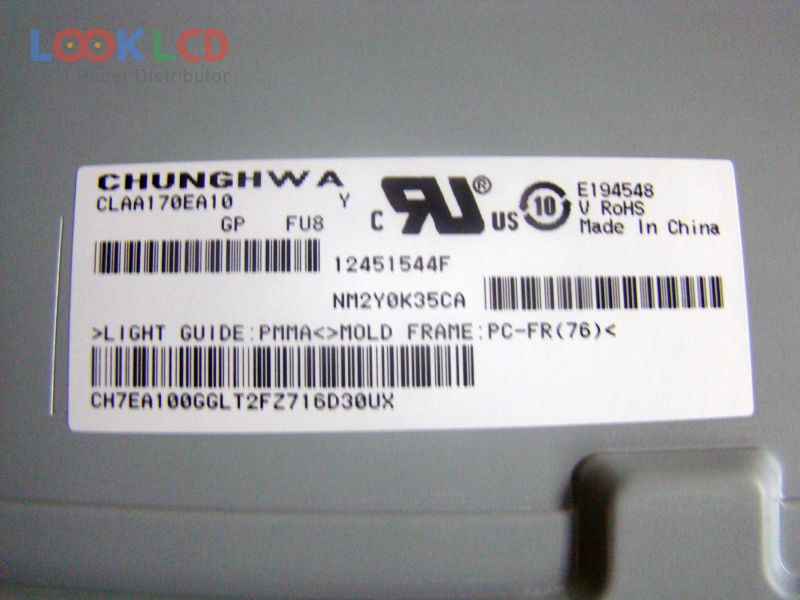

| Nambari ya Sehemu | CLAA170EA10 |
| Chapa | CPT |
| Ukubwa | 17.0 |
| Maombi | DMPC |
| Azimio | 1280×1024 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | CPT |
| mfano wa paneli | CLAA170EA10 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 17.0 inch |
| azimio | 1280(RGB)×1024 , SXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 337.92×270.336 mm |
| muhtasari | 358.5×296.5×17.5 mm |
| uso | Antiglare |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193172% |
| wakati wa majibu | 5 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (2 ch, 8-bit), 30 pins |
| voltage ya pembejeo | 5.0V (Typ.) |
| maombi | DMPC |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101NC01CW | CPT | 10.1 | 1024×600 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA150XP01 | CPT | 15.0 | 1024×768 |
| CLAA150XP01Q | CPT | 15.0 | 1024×768 |
| CLAA150XP01Q V2 | CPT | 15.0 | 1024×768 |
| CLAA150XP03 | CPT | 15.0 | 1024×768 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| CLAA185WA03 | CPT | 18.5 | 1366×768 |
| HT215F01-100 | BOE | 21.5 | 1920×1080 |
| LM190WX2-TLK1 | LG Display | 19.0 | 1440×900 |
| LM201U05-SLA3 | LG Display | 20.1 | 1600×1200 |
| LM215WF3-SDC2 | LG Display | 21.5 | 1920×1080 |
| LM270QQ1-SDA2 | LG Display | 27.0 | 5120×2880 |
| LM300W01-STA1 | LG Display | 30.0 | 2560×1600 |
| LTM201U1-L01 | Samsung | 20.1 | 1600×1200 |
| LTM230HL08 | Samsung | 23.0 | 1920×1080 |
| LTM240CT04 | Samsung | 24.0 | 1920×1200 |
| MT216WW01 V.0 | Innolux | 21.6 | 1680×1050 |
