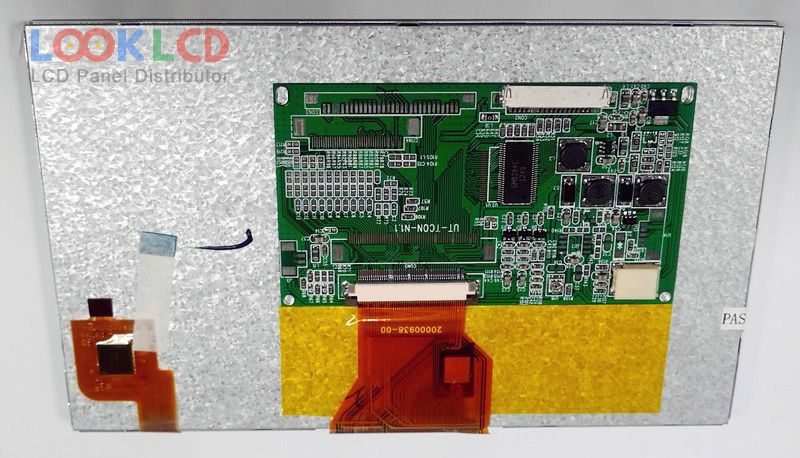

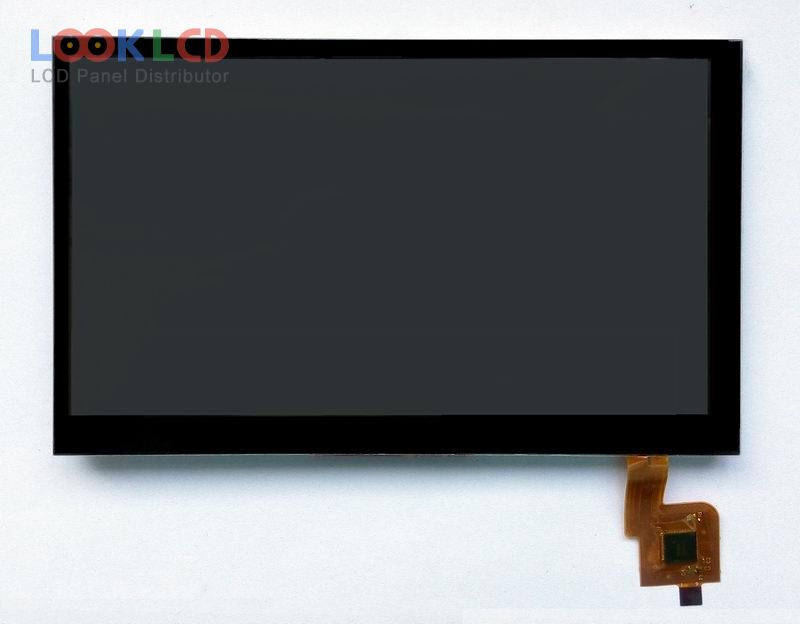

| Nambari ya Sehemu | DLC0700FDG-T-6 |
| Chapa | Other |
| Ukubwa | 7.0 |
| Maombi | PND |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | DLC |
| mfano wa paneli | DLC0700FDG-T-6 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 154.08×85.92 mm |
| muhtasari | 164.9×100×11.5 mm |
| uso | |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 10/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S6PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 20 pins |
| voltage ya pembejeo | 5.0V (Typ.) |
| maombi | PND |
