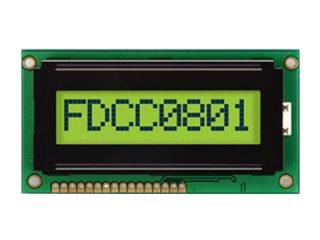

| Nambari ya Sehemu | FC0801A01-FHYYBW-51SK |
| Chapa | Fordata |
| Ukubwa | 2.3 |
| Maombi | Instruments & Me |
| Azimio | 5×8 |
| Muundo | STN-LCD, LCM |
| Mwangaza | |
| CR | 10:1 |
| Rangi | Monochrome |
| Mwangaza nyuma | YG-LED |
| Kiolesura | 8-bit |
| chapa | Fordata |
| mfano | FC0801A01-FHYYBW-51SK |
| ukubwa wa diagonal | 2.3 inch |
| aina | STN-LCD, LCM |
| muundo wa char | 5×8 dots |
| saizi ya fonti | 6.45×10.75 mm |
| sauti ya fonti | 7.15×10.75 mm |
| eneo la kazi | 56.5(H)×10.75(V) mm |
| muhtasari dim. | 84(H)×44(V) ×13.5(D) mm |
| eneo la bezel | 61.0(H)×15.8(V) mm |
| matibabu | - |
| mwangaza | - |
| uwiano wa utofautishaji | 10:1 (Typ.) (TM) |
| tazama mwelekeo | 6 o'clock |
| wakati wa majibu | 150/150 (Typ.)(Tr/Tf) |
| angle ya kutazama | - |
| hali ya uendeshaji | STN, Yellow/Green (Positive), Transflective |
| rangi ya msaada | Monochrome |
| chanzo cha mwanga | YG-LED , 20K hours , W/O Driver |
| uzito | - |
| iliyoundwa kwa ajili ya | Instruments & Meters |
| kiwango cha fremu | - |
| jopo la kugusa | Without |
| aina ya kiolesura | 8-bit parallel , 16 pins Pad |
| usambazaji wa nguvu | 5.0V (Typ.) |
| mazingira | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
