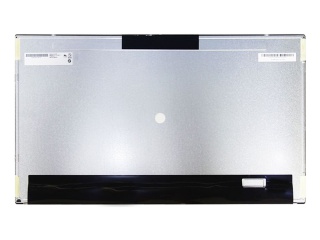

| Nambari ya Sehemu | G238HAN01.1 |
| Chapa | AUO |
| Ukubwa | 23.8 |
| Maombi | Industrial Medical I |
| Azimio | 1920×1080 |
| Muundo | LCM , a-Si TFT-LCD |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 18S4P |
| Kiolesura | LVDS |
| mtengenezaji | AUO |
| ukubwa wa skrini | 23.8 inch |
| nambari ya pixel | 1920(RGB)×1080 (FHD) 92PPI |
| eneo amilifu(mm) | 527.04 × 296.46 (H×V) |
| eneo la bezel(mm) | 530.2 × 299.6 (H×V) |
| mwangaza | 400 cd/m² (Typ.) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10) |
| mtazamo mzuri | Symmetry |
| kina cha rangi | 16.7M 70% NTSC |
| wingi | 2.30Kgs (Typ.) |
| kiwango cha upya | 60Hz |
| aina ya ishara | LVDS (2 ch, 8-bit) , 30 pins Connector |
| usambazaji wa voltage | 5.0V (Typ.) |
| max. ukadiriaji | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| jina la mfano | G238HAN01.1 |
| aina ya skrini | LCM , a-Si TFT-LCD |
| mpangilio | RGB Vertical Stripe |
| muhtasari(mm) | 543 × 317.4 × 11.65 (H×V×D) |
| matibabu | Antiglare, Hard coating (3H) |
| uwiano wa utofautishaji | 1000 : 1 (Typ.) (TM) |
| majibu | 14 (Typ.)(G to G) ms |
| hali ya kazi | AHVA, Normally Black, Transmissive |
| backlight | 18S4P WLED , 50K hours , No Driver |
| kutumika kwa | Industrial Medical Imaging |
| skrini ya kugusa | Without |
