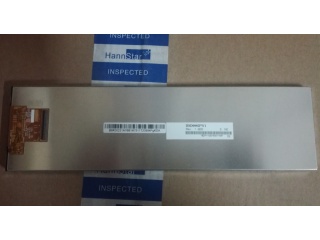

| Nambari ya Sehemu | HSD088IPW1-B00 |
| Chapa | HannStar |
| Ukubwa | 8.8 |
| Maombi | Automotive Display |
| Azimio | 1920×480 |
| Muundo | LCM , a-Si TFT-LCD |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | MIPI |
| mtengenezaji | HannStar |
| jina la mfano | HSD088IPW1-B00 |
| ukubwa wa skrini | 8.8 inch |
| aina ya skrini | LCM , a-Si TFT-LCD |
| nambari ya pixel | 1920×480(RGB) 222PPI |
| mpangilio | RGB Horizontal Stripe |
| eneo amilifu(mm) | 218.88 × 54.72 (H×V) |
| muhtasari(mm) | - |
| mwangaza | - |
| uwiano wa utofautishaji | 800 : 1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| majibu | 30 (Typ.)(Tr+Td) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | IPS Pro, Normally Black, Transmissive |
| kina cha rangi | 16.7M 50% NTSC |
| backlight | WLED , 30K hours , No Driver |
| wingi | - |
| kutumika kwa | Automotive Display |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | MIPI (4 data lanes) , 40 pins Connector |
| usambazaji wa voltage | 3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| max. ukadiriaji | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
