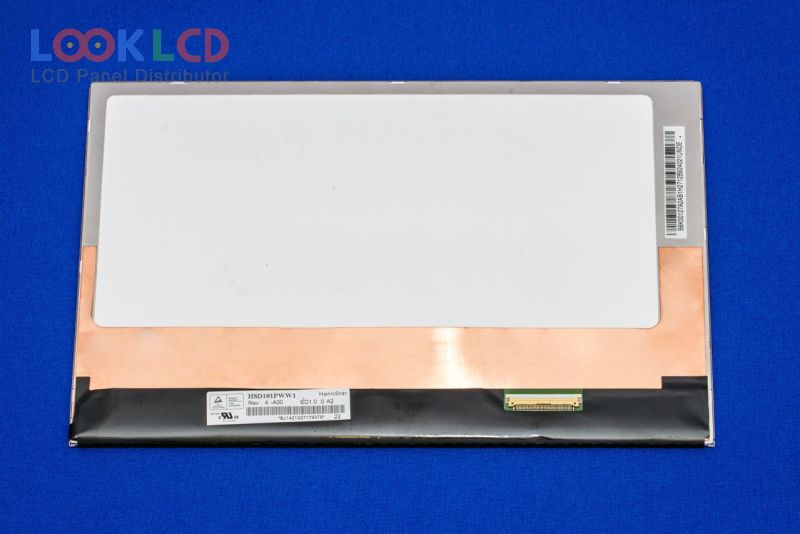

HSD101PWW1-A00 Rev.4

HSD101PWW1-A00 Rev.4
HSD101PWW1-A00 Rev.4 thumb
Chapa
HannStar
Ukubwa
10.1
Maombi
PAD
Azimio
1280×800
Muundo
LCM
Mwangaza
350
CR
800:1
Rangi
262K
Mwangaza nyuma
WLED
Kiolesura
LVDS
In Stock
2500
Vipimo

Nambari ya Sehemu HSD101PWW1-A00 Rev.4
ChapaHannStar
Ukubwa10.1
MaombiPAD
Azimio1280×800
MuundoLCM
Mwangaza350
CR800:1
Rangi262K
Mwangaza nyumaWLED
KiolesuraLVDS
chapa ya paneliHannStar
mfano wa paneliHSD101PWW1-A00 Rev.4
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli10.1 inch
azimio1280(RGB)×800 , WXGA
hali ya kuonyeshaHS-IPS, Normally Black, Transmissive
eneo la kazi216.96×135.6 mm
muhtasari229.46×149.2×5.2 mm
usoGlare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.)
mwangaza350 cd/m² (Typ.)
uwiano wa utofautishaji800:1 (Typ.)
kuonyesha rangi262K (6-bit), CIE193145%
wakati wa majibu25 (Typ.)(Tr+Td)
angle ya kutazama89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taaWLEDEmbedded (LED Driver)
kiolesura cha isharaLVDS (1 ch, 6-bit), 40 pins
voltage ya pembejeo3.3V (Typ.)
maombiPAD
Mfano wa Familia
HSD101PWW1-A00 HannStar 10.1 1280×800
HSD101PWW1-A00 Rev.4 HannStar 10.1 1280×800
HSD101PWW1-A00-C40 HannStar 10.1 1280×800
HSD101PWW1-B00 HannStar 10.1 1280×800
HSD101PWW1-B00-C11 HannStar 10.1 1280×800
HSD101PWW1-F00 HannStar 10.1 1280×800
HSD101PWW1-F01 HannStar 10.1 1280×800
HSD101PWW1-G10 HannStar 10.1 1280×800
HSD101PWW1-H00 HannStar 10.1 1280×800
