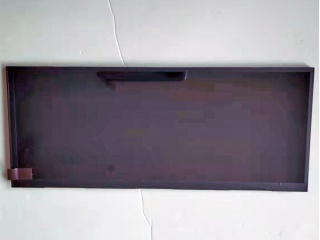

| Nambari ya Sehemu | HSD103JPW2-H10 |
| Chapa | HannStar |
| Ukubwa | 10.3 |
| Maombi | Outdoor High Brightn |
| Azimio | 1920×720 |
| Muundo | LCM , a-Si TFT-LCD |
| Mwangaza | |
| CR | 1500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 4 |
| Kiolesura | LVDS |
| mtengenezaji | HannStar |
| ukubwa wa skrini | 10.3 inch |
| nambari ya pixel | 1920(RGB)×720 200PPI |
| eneo amilifu(mm) | 243.648 × 91.368 (H×V) |
| eneo la bezel(mm) | 246.7 × 94.4 (H×V) |
| mwangaza | 1000 cd/m² (Typ.) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| mtazamo mzuri | Symmetry |
| kina cha rangi | 16.7M 70% NTSC |
| wingi | TBD |
| kiwango cha upya | 60Hz |
| aina ya ishara | LVDS (2 ch, 8-bit) , 60 pins FPC |
| usambazaji wa voltage | 3.3V (Typ.) |
| max. ukadiriaji | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| jina la mfano | HSD103JPW2-H10 |
| aina ya skrini | LCM , a-Si TFT-LCD |
| mpangilio | RGB Vertical Stripe |
| muhtasari(mm) | 258.8 × 110 × 17 (H×V×D) |
| matibabu | Antiglare, Hard coating (3H) |
| uwiano wa utofautishaji | 1500 : 1 (Typ.) (TM) |
| majibu | 30 (Max.)(Tr+Td) ms |
| hali ya kazi | IPS Pro, Normally Black, Transmissive |
| backlight | 4 strings WLED , 20K hours , No Driver |
| kutumika kwa | Outdoor High Brightness Automotive Display |
| skrini ya kugusa | Without |
