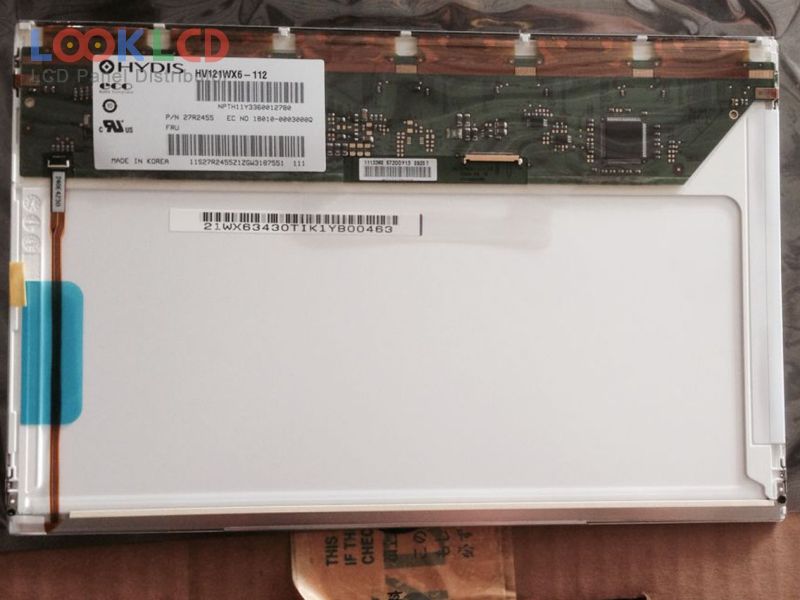

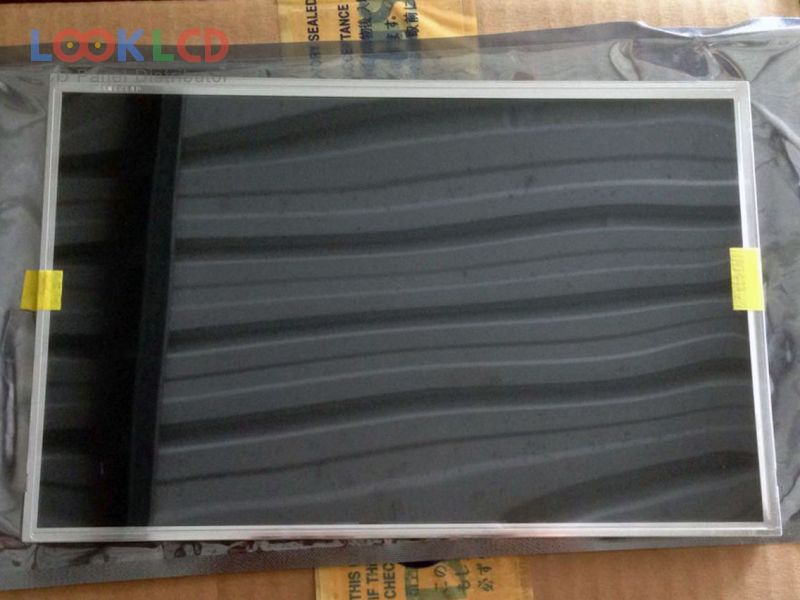

| Nambari ya Sehemu | HV121WX6-112 |
| Chapa | HYDIS |
| Ukubwa | 12.1 |
| Maombi | PAD |
| Azimio | 1280×800 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HYDIS |
| mfano wa paneli | HV121WX6-112 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 12.1 inch |
| azimio | 1280(RGB)×800 , WXGA |
| hali ya kuonyesha | AFFS, Normally Black, Transmissive |
| eneo la kazi | 261.12×163.2 mm |
| muhtasari | 276.8×180×6.6 mm |
| uso | |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 12S4PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
