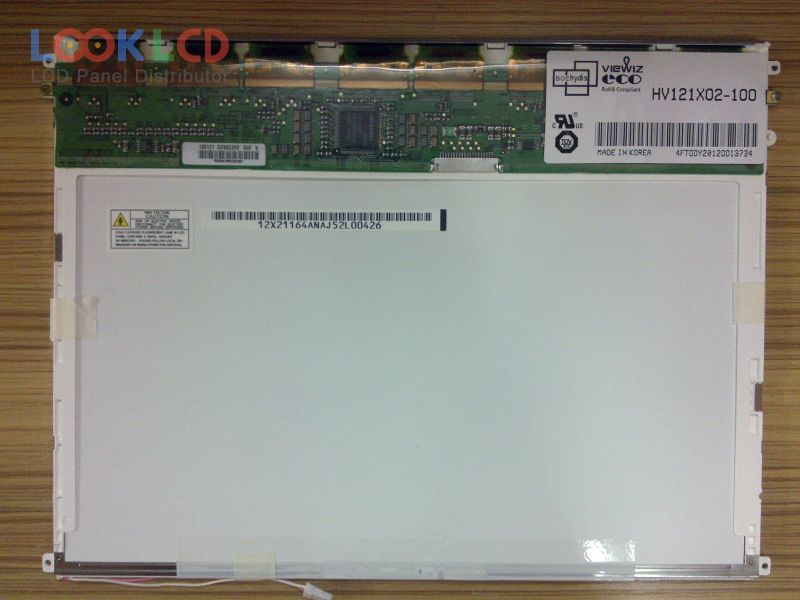

| Nambari ya Sehemu | HV121X02-100 |
| Chapa | HYDIS |
| Ukubwa | 12.1 |
| Maombi | IA |
| Azimio | 1024×768 |
| Muundo | CELL |
| Mwangaza | 0 |
| CR | 450:1 |
| Rangi | 262K |
| Mwangaza nyuma | No B/L |
| Kiolesura | LVDS |
| chapa ya paneli | BOE HYDIS |
| mfano wa paneli | HV121X02-100 |
| aina ya paneli | a-Si TFT-LCD , CELL |
| saizi ya paneli | 12.1 inch |
| azimio | 1024(RGB)×768 , XGA |
| hali ya kuonyesha | AFFS, Normally Black, Transmissive |
| eneo la kazi | 245.76×184.32 mm |
| uso | Glare (Haze 0%), Antireflection |
| uhamishaji | 5.91% (Typ.)(with Polarizer) |
| uwiano wa utofautishaji | 450:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193140% |
| wakati wa majibu | 32 (Typ.)(Tr+Td) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| AA121TD02 | Mitsubishi | 12.1 | 1280×800 |
| HT121WX2-211 | HYDIS | 12.1 | 1280×800 |
| HV121X02-100 | HYDIS | 12.1 | 1024×768 |
| HV121X03-100 | HYDIS | 12.1 | 1024×768 |
| LP121S1 | LG Display | 12.1 | 800×600 |
| LP121X04-A2 | LG Display | 12.1 | 1024×768 |
| LQ121K1LG52 | SHARP | 12.1 | 1280×800 |
| LTD121EA4XY | TOSHIBA | 12.1 | 1024×768 |
| NL8060BC31-17 | NLT | 12.1 | 800×600 |
| TM121SDS01 | Tianma | 12.1 | 800×600 |
| G150XG03 V2 | AUO | 15.0 | 1024×768 |
| G156HAN01.0 | AUO | 15.6 | 1920×1080 |
| KS3224ASTT-FW-X2 | Kyocera | 5.7 | 320×240 |
| LQ085Y3DG18 | SHARP | 8.5 | 800×480 |
| LQ235D1LW03 | SHARP | 23.6 | 1920×1080 |
| LTD104C11S | TOSHIBA | 10.4 | 640×480 |
| NL6448BC33-46 | NLT | 10.4 | 640×480 |
| PD064VXA | E Ink | 6.4 | 640×480 |
| S088WX03 | CDTECH | 8.8 | 1280×320 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
