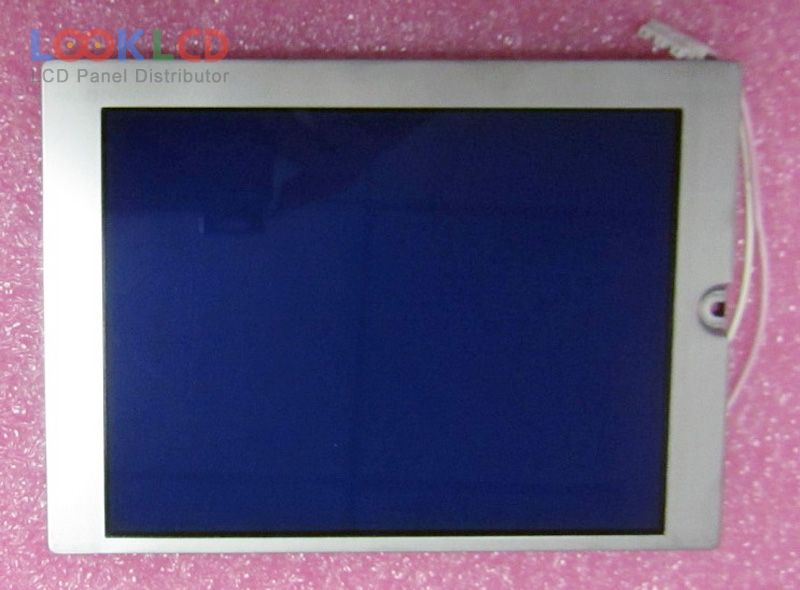

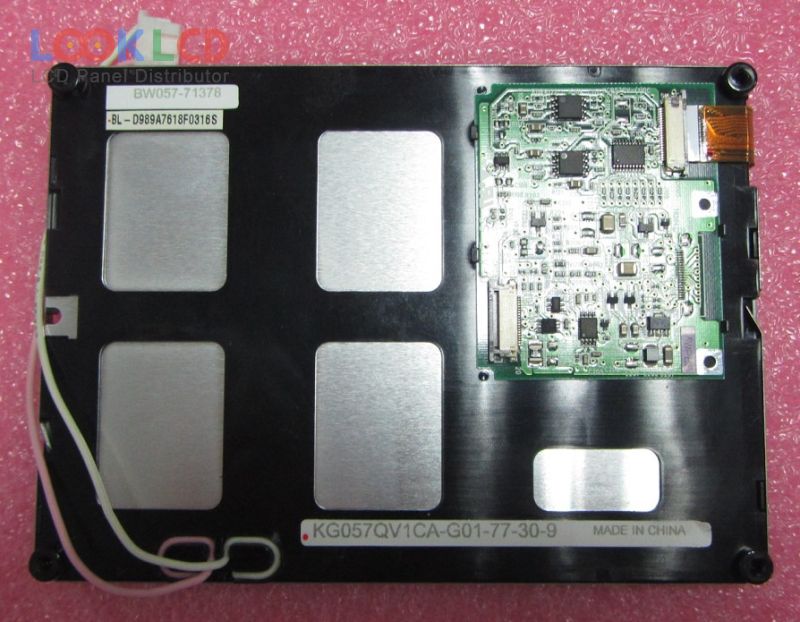

| Nambari ya Sehemu | KG057QV1CA-G01 |
| Chapa | Kyocera |
| Ukubwa | 5.7 |
| Maombi | IA |
| Azimio | 320×240 |
| Muundo | LCM |
| Mwangaza | 260 |
| CR | 4:1 |
| Rangi | Monochrome |
| Mwangaza nyuma | CCFL |
| Kiolesura | Parallel Data |
| chapa ya paneli | Kyocera |
| mfano wa paneli | KG057QV1CA-G01 |
| aina ya paneli | STN-LCD , LCM |
| saizi ya paneli | 5.7 inch |
| azimio | 320×240 , QVGA |
| hali ya kuonyesha | STN, Blue mode (Negative), Transmissive |
| eneo la kazi | 115.18×86.38 mm |
| muhtasari | 144×104.8×13.2 mm |
| uso | Glare (Haze 0%) |
| mwangaza | 260 cd/m² (Typ.) |
| uwiano wa utofautishaji | 4:1 (Typ.) |
| kuonyesha rangi | Monochrome |
| wakati wa majibu | 210/130 (Typ.)(Tr/Td) |
| angle ya kutazama | 45/45/20/45 (Typ.)(CR≥2)(L/R/U/D) |
| masafa | 75Hz |
| aina ya taa | 1 pcsCCFLOptional |
| kiolesura cha ishara | Parallel Data (4-bit), 20 pins |
| voltage ya pembejeo | 3.3/5.0V (Typ.)(VDD) |
| maombi | IA |
