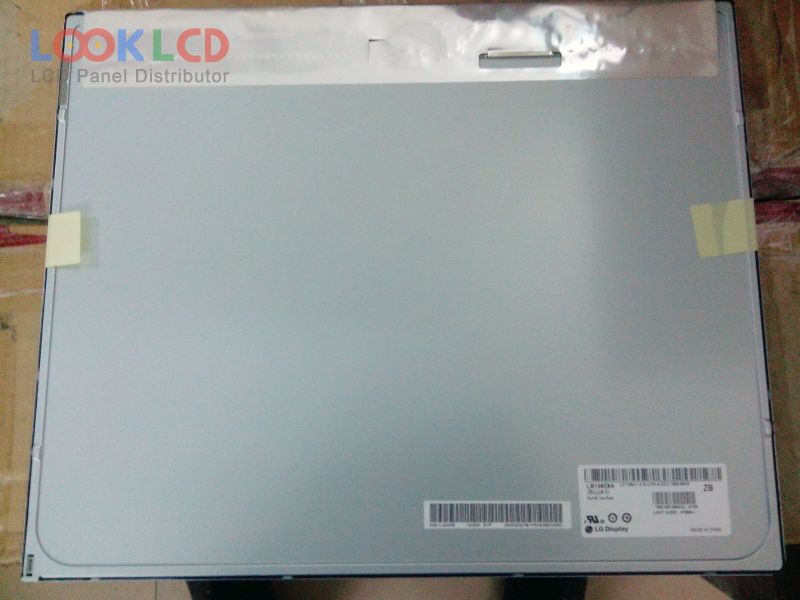

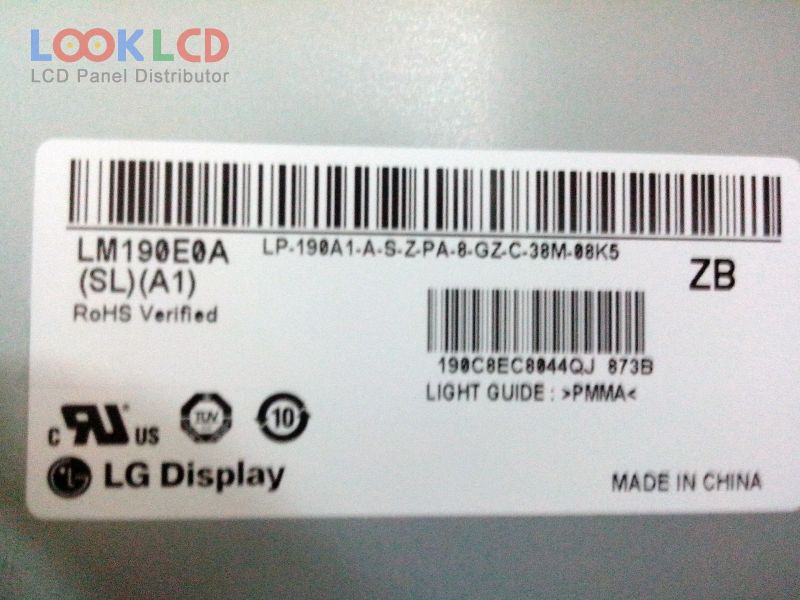

LM190E0A-SLA1

LM190E0A-SLA1
LM190E0A-SLA1
LM190E0A-SLA1
LM190E0A-SLA1 thumb LM190E0A-SLA1 thumb LM190E0A-SLA1 thumb
Chapa
LG Display
Ukubwa
19.0
Maombi
DMPC
Azimio
1280×1024
Muundo
LCM
Mwangaza
250
CR
1000:1
Rangi
16.7M
Mwangaza nyuma
WLED
Kiolesura
LVDS
In Stock
16935
Vipimo

Nambari ya Sehemu LM190E0A-SLA1
ChapaLG Display
Ukubwa19.0
MaombiDMPC
Azimio1280×1024
MuundoLCM
Mwangaza250
CR1000:1
Rangi16.7M
Mwangaza nyumaWLED
KiolesuraLVDS
chapa ya paneliLG Display
mfano wa paneliLM190E0A-SLA1
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli19.0 inch
azimio1280(RGB)×1024 , SXGA
hali ya kuonyeshaAH-IPS, Normally Black, Transmissive
eneo la kazi376.32×301.056 mm
muhtasari396×324×10.4 mm
usoAntiglare, Hard coating (3H)
mwangaza250 cd/m² (Typ.)
uwiano wa utofautishaji1000:1 (Typ.)
kuonyesha rangi16.7M (8-bit), CIE193172%
wakati wa majibu14 (Typ.)(G to G)
angle ya kutazama89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taa15S2PWLEDWithout Driver
kiolesura cha isharaLVDS (2 ch, 8-bit), 30 pins
voltage ya pembejeo5.0V (Typ.)
maombiDMPC
