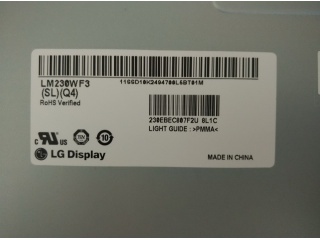

| Nambari ya Sehemu | LM230WF3-SLQ4 |
| Chapa | LG Display |
| Ukubwa | 23.0 |
| Maombi | Desktop Monitor |
| Azimio | 1920×1080 |
| Muundo | LCM, a-Si TFT-LCD |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 18S2P |
| Kiolesura | LVDS |
| mtengenezaji | LG Display |
| jina la mfano | LM230WF3-SLQ4 |
| ukubwa wa skrini | 23.0 inch |
| aina ya skrini | LCM, a-Si TFT-LCD |
| nambari ya pixel | 1920(RGB)×1080 (FHD) 95PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 509.184 × 286.416 (H×V) |
| muhtasari(mm) | 533.2 × 312 × 11 (H×V×D) |
| eneo la bezel(mm) | 513.8 × 291.0 (H×V) |
| matibabu | - |
| mwangaza | - |
| uwiano wa utofautishaji | 1000 : 1 (Typ.) (TM) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10) |
| majibu | 14 (Typ.)(G to G) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | IPS, Normally Black, Transmissive |
| kina cha rangi | 16.7M |
| backlight | 18S2P WLED , 30K hours |
| wingi | 1.93/2.03Kgs (Typ./Max.) |
| kutumika kwa | Desktop Monitor |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | LVDS (2 ch, 8-bit) , Connector 30 pins |
| usambazaji wa voltage | 5.0V (Typ.) |
| max. ukadiriaji | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
