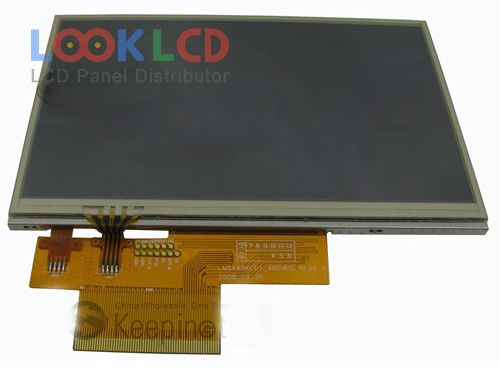

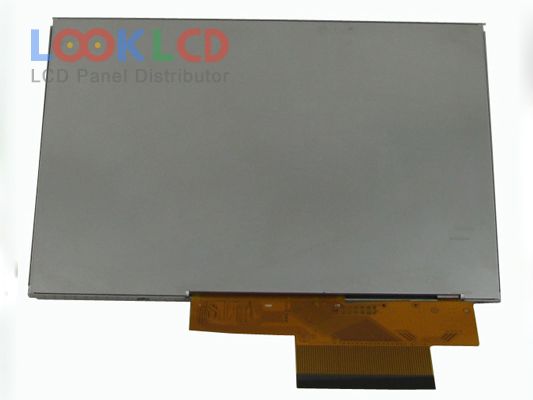

| Nambari ya Sehemu | LMS480KC02 |
| Chapa | Samsung |
| Ukubwa | 4.8 |
| Maombi | PND |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | SAMSUNG |
| mfano wa paneli | LMS480KC02 |
| aina ya paneli | LTPS TFT-LCD , LCM |
| saizi ya paneli | 4.8 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | Normally Black, Transmissive |
| eneo la kazi | 104.4×62.64 mm |
| muhtasari | 112×75 mm |
| uso | |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193150% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 6S2PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit) + SPI, 50 pins |
| voltage ya pembejeo | 3.3/3.3V (Typ.)(VCC/VCCIO) |
| maombi | PND |
| 35QVW1H | SII | 3.5 | 320×240 |
| A040FL01 V2 | AUO | 4.0 | 480×272 |
| AM480272H3TMQW-T00H | AMPIRE | 4.3 | 480×272 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LMS500HF13-002 | Samsung | 5.0 | 480×272 |
| LMS500HF13-003 | Samsung | 5.0 | 480×272 |
| LR043JC111 | Innolux | 4.3 | 480×272 |
| PA050XS1 | E Ink | 5.0 | 320×234 |
