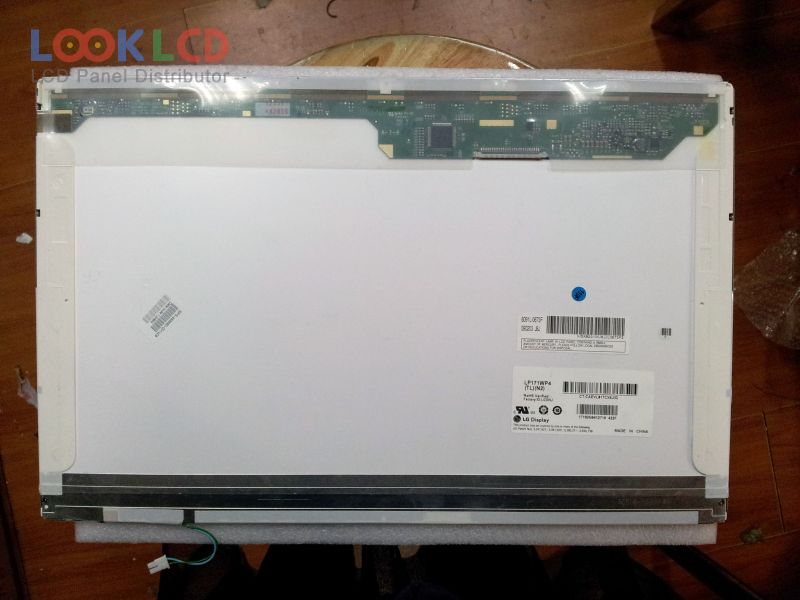

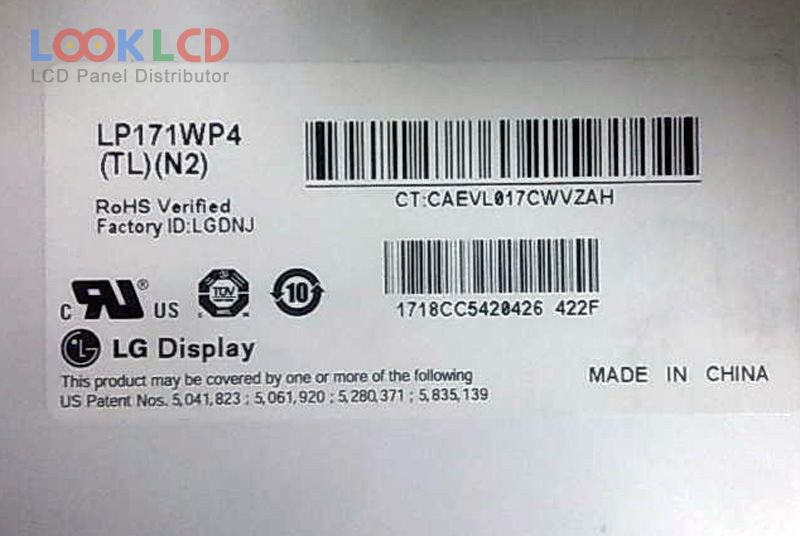

| Nambari ya Sehemu | LP171WP4-TLN2 |
| Chapa | LG Display |
| Ukubwa | 17.1 |
| Maombi | NBPC |
| Azimio | 1440×900 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | LG Display |
| mfano wa paneli | LP171WP4-TLN2 9 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 17.1 inch |
| azimio | 1440(RGB)×900 , WXGA+ |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 367.2×229.5 mm |
| muhtasari | 382.2×244.5×6.5 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Glare (Haze 0%), Hard coating (2H) |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193145% |
| wakati wa majibu | 16 (Typ.)(Tr+Td) |
| angle ya kutazama | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (2 ch, 6-bit), 30 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NBPC |
