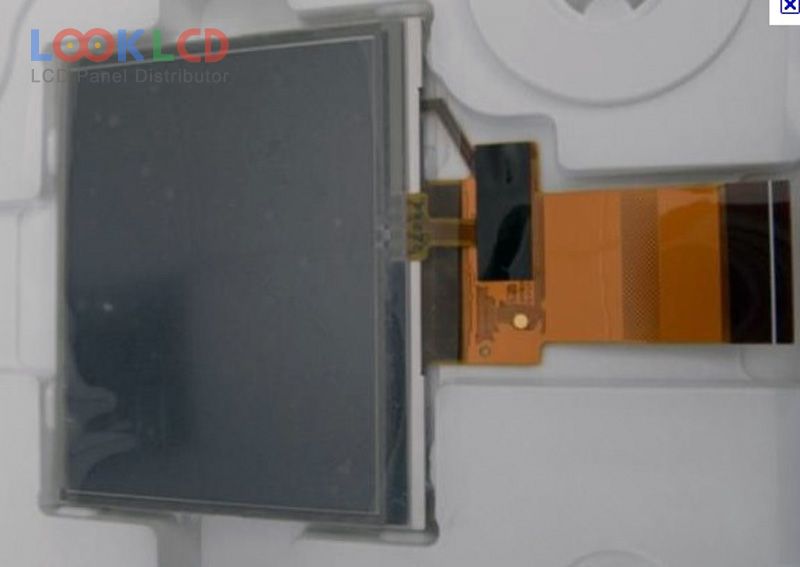

| Nambari ya Sehemu | LQ035Q1DG02 |
| Chapa | SHARP |
| Ukubwa | 3.5 |
| Maombi | PND |
| Azimio | 320×240 |
| Muundo | LCM |
| Mwangaza | 320 |
| CR | 300:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ035Q1DG02 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 3.5 inch |
| azimio | 320(RGB)×240 , QVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 70.56×52.92 mm |
| muhtasari | 76.9×63.9×4.45 mm |
| uso | Antiglare, Hard coating (2H) |
| mwangaza | 320 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193150% |
| wakati wa majibu | 30/30 (Typ.)(Tr/Td) |
| angle ya kutazama | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 6S1PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit) + SPI, 71 pins |
| voltage ya pembejeo | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| rohs: | |
| maombi | PND |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035NC111 | Innolux | 3.5 | 320×240 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ035Q1DG04 | SHARP | 3.5 | 320×240 |
| LQ035Q1DH02 | SHARP | 3.5 | 320×240 |
| LQ035Q2DD56 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB05 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| A047FW01 V0 | AUO | 4.7 | 480×272 |
| AT043TN13 | Innolux | 4.3 | 480×272 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| LB035Q01-TJ01 | LG Display | 3.5 | 320×240 |
| LMS500HF01 | Samsung | 5.0 | 480×272 |
| LMS500HF05 | Samsung | 5.0 | 480×272 |
| LMS500HF13-003 | Samsung | 5.0 | 480×272 |
| LQ043T3DG02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
