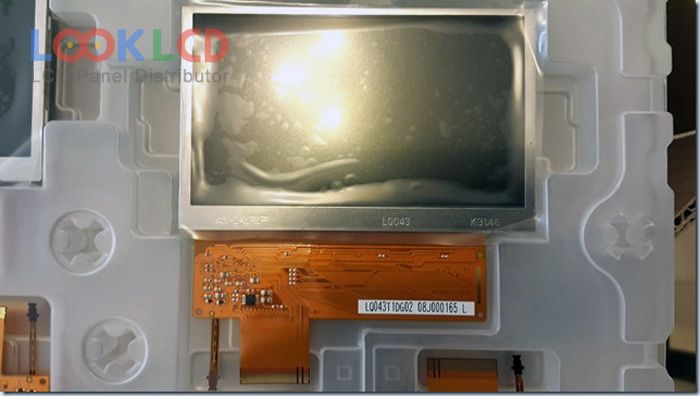

| Nambari ya Sehemu | LQ043T1DG02 |
| Chapa | SHARP |
| Ukubwa | 4.3 |
| Maombi | HHP |
| Azimio | 480×272 |
| Muundo | LCM |
| Mwangaza | 600 |
| CR | 300:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ043T1DG02 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 4.3 inch |
| azimio | 480(RGB)×272 , WQVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 95.04×53.856 mm |
| muhtasari | 105.5×67.2 mm |
| uso | |
| mwangaza | 600 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 30/30 (Typ.)(Tr/Td) |
| angle ya kutazama | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 9S1PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 3.3/5.0V (Typ.)(VCC/AVDD) |
| maombi | HHP |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T1LX01A | SHARP | 4.3 | 540×960 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| LQ043Y1DX02 | SHARP | 4.3 | 480×800 |
| 20QVF0H | SII | 2.0 | 240×320 |
| 28QVF1H | SII | 2.8 | 240×320 |
| AM-320240LATNQW-00H-F | AMPIRE | 3.5 | 320×240 |
| DLC0430NZG | Other | 4.3 | 480×272 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LQ030Q3DG01 | SHARP | 3.0 | 320×240 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LS029B4DN01 | SHARP | 2.9 | 240×456 |
| TM047NBH03 | Tianma | 4.7 | 480×272 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
