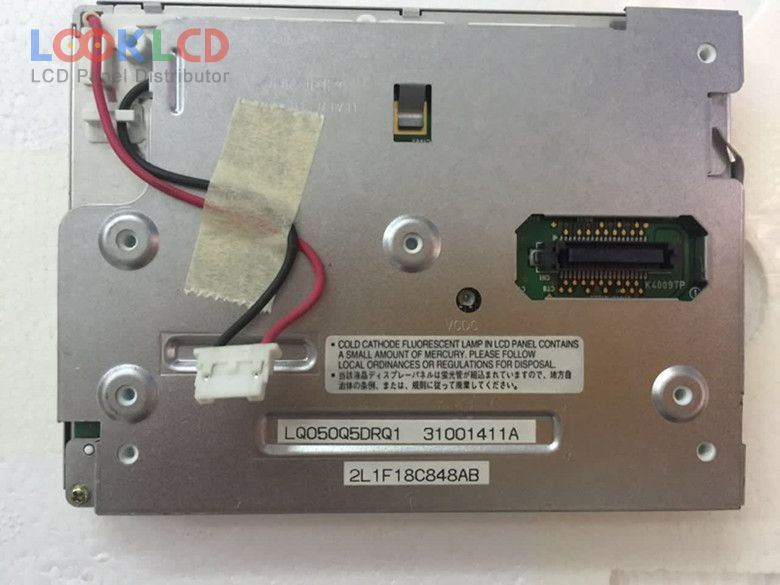

| Nambari ya Sehemu | LQ050Q5DR01 |
| Chapa | SHARP |
| Ukubwa | 5.0 |
| Maombi | CNS |
| Azimio | 320×240 |
| Muundo | LCM |
| Mwangaza | 380 |
| CR | 100:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ050Q5DR01 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 5.0 inch |
| azimio | 320(RGB)×240 , QVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 101.28×74.76 mm |
| muhtasari | 119.4×89.1×16.05 mm |
| uso | Antiglare, Antireflection |
| mwangaza | 380 cd/m² (Typ.) |
| uwiano wa utofautishaji | 100:1 (Min.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 30/50 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/55/65 (Typ.)(CR≥5)(L/R/U/D) |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.)(VCC) |
| rohs: | |
| maombi | CNS |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| LQ050A5BS02 | SHARP | 5.0 | 320×234 |
| LQ050Q5DR01 | SHARP | 5.0 | 320×240 |
| LQ050T1SX02 | SHARP | 5.0 | 1080×1920 |
| LQ050T1SX05(G) | SHARP | 5.0 | 1080×1920 |
| LQ050T3GG01 | SHARP | 5.0 | 400×234 |
| LQ050T5DG01 | SHARP | 5.0 | 400×240 |
| LQ050T5DG02 | SHARP | 5.0 | 400×240 |
| LQ050T5DW02 | SHARP | 5.0 | 400×240 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA070NJ05CW | CPT | 7.0 | 1024×600 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| G154I1-L01 | Innolux | 15.4 | 1280×800 |
| LQ088H9DR01U | SHARP | 8.8 | 640×240 |
| LQ6BW506 | SHARP | 5.8 | 400×234 |
| TM062RDS01 | Tianma | 6.2 | 800×480 |
| YX090DKN01.0 | SEBO | 9.0 | 1280×720 |
