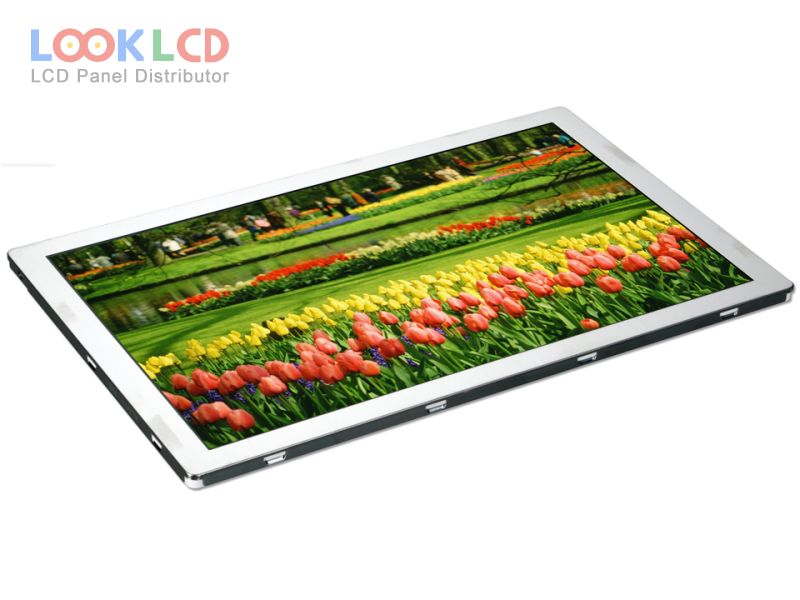

| Nambari ya Sehemu | LQ085Y3DW01 |
| Chapa | SHARP |
| Ukubwa | 8.5 |
| Maombi | IA |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ085Y3DW01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.5 inch |
| azimio | 800×480(RGB) , WVGA |
| hali ya kuonyesha | ASV, Normally Black, Transmissive |
| eneo la kazi | 184.8×110.88 mm |
| muhtasari | 210×134 mm |
| uso | Antiglare |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 35 (Typ.)(Tr+Td) |
| angle ya kutazama | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 9S4PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit), 50 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
