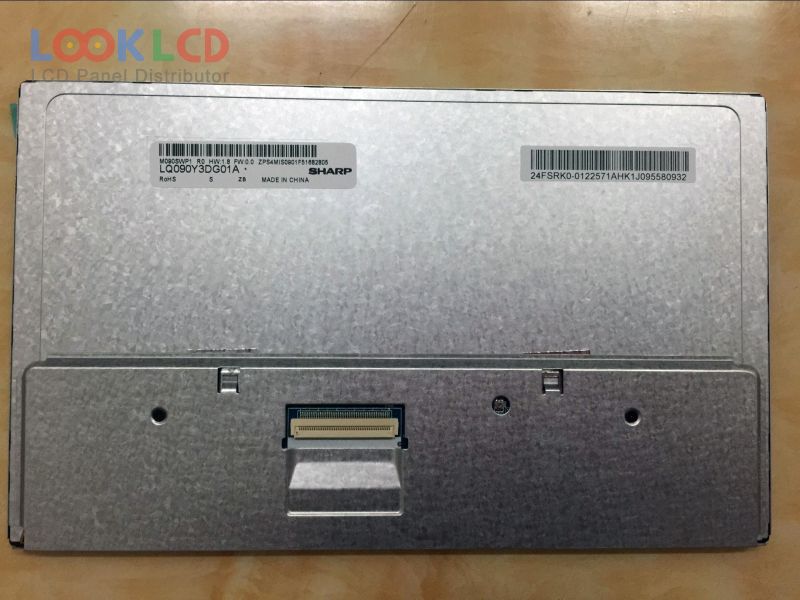

| Nambari ya Sehemu | LQ090Y3DG01A |
| Chapa | SHARP |
| Ukubwa | 9.0 |
| Maombi | DPF |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ090Y3DG01A |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 9.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 198×111.696 mm |
| muhtasari | 211.1×128.4 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit) |
| maombi | DPF |
| A061VW01 V0 | AUO | 6.1 | 800×480 |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| AT080TN43 | Innolux | 8.0 | 800×600 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| LD050WQ1-TD02 | LG Display | 5.0 | 480×272 |
| P64AN2AP08 | E Ink | 6.4 | 320×234 |
| PA079DS4 | E Ink | 7.9 | 480×234 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
