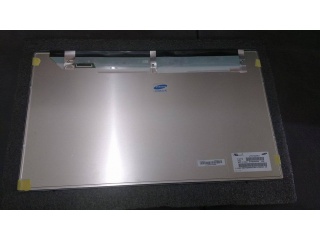

| Nambari ya Sehemu | LTF230AN01 |
| Chapa | SAMSUNG |
| Ukubwa | 23.0 |
| Maombi | TV Sets |
| Azimio | 1366×768 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 4000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa | SAMSUNG |
| mfano | LTF230AN01 |
| ukubwa wa diagonal | 23.0 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 1366(RGB)×768 [WXGA] 68PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 508.152(H)×285.696(V) mm |
| muhtasari dim. | - |
| mwangaza | - |
| uwiano wa utofautishaji | 4000:1 (Typ.) (TM) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | 8 (Typ.)(G to G) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10) |
| hali ya uendeshaji | PVA, Normally Black, Transmissive |
| rangi ya msaada | 16.7M 68% NTSC |
| chanzo cha mwanga | WLED |
| uzito | - |
| iliyoundwa kwa ajili ya | TV Sets |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | Without |
| aina ya kiolesura | LVDS (1 ch, 8-bit) , 30 pins Connector |
| usambazaji wa nguvu | 12.0V (Typ.) |
| mazingira | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LC230EUE-SEA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SLE1 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SLK1 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SSA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLB1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLF4 | LG Display | 23.0 | 1920×1080 |
| LTA230W2-L01 | Samsung | 23.0 | 1366×768 |
| LTM230HT05 | Samsung | 23.0 | 1920×1080 |
| LTM230HT09 | Samsung | 23.0 | 1920×1080 |
