Samsung LTM220M1-L02(Glare) hifadhidata, vipimo, hisa, programu www.looklcd-mk.com
LookLCD LookLCD

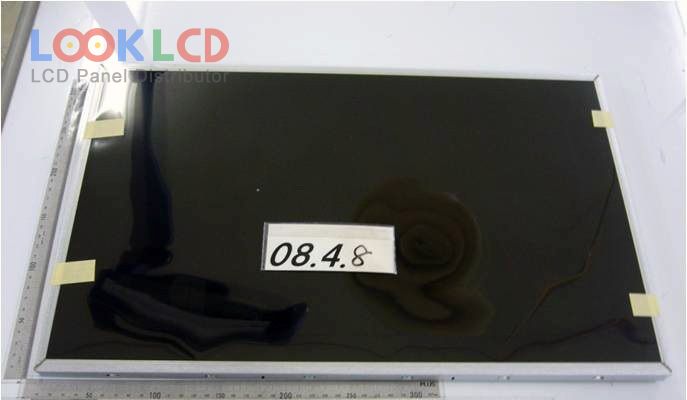

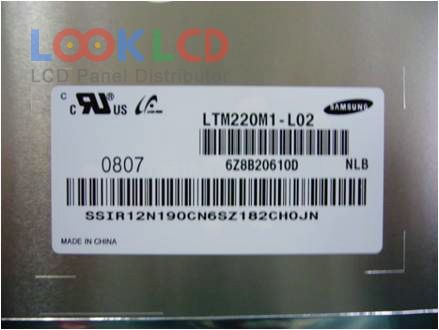

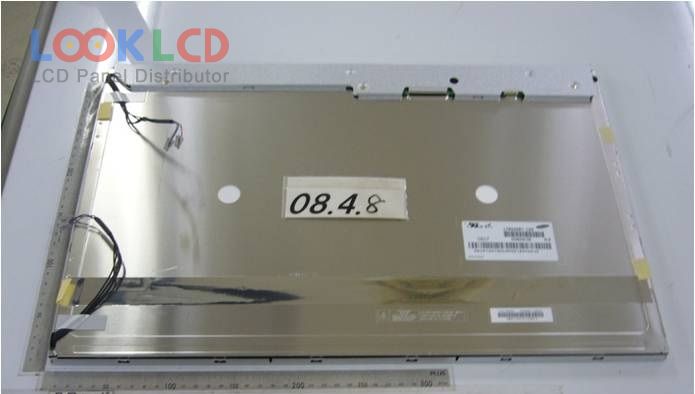

LTM220M1-L02(Glare)

LTM220M1-L02(Glare)
LTM220M1-L02(Glare)
LTM220M1-L02(Glare)
LTM220M1-L02(Glare) thumb LTM220M1-L02(Glare) thumb LTM220M1-L02(Glare) thumb
Chapa
Samsung
Ukubwa
22.0
Maombi
DMPC
Azimio
1680×1050
Muundo
LCM
Mwangaza
400
CR
1000:1
Rangi
16.7M
Mwangaza nyuma
CCFL
Kiolesura
LVDS
In Stock
17908
Vipimo

Nambari ya Sehemu LTM220M1-L02(Glare)
ChapaSamsung
Ukubwa22.0
MaombiDMPC
Azimio1680×1050
MuundoLCM
Mwangaza400
CR1000:1
Rangi16.7M
Mwangaza nyumaCCFL
KiolesuraLVDS
chapa ya paneliSAMSUNG
mfano wa paneliLTM220M1-L02(Glare)
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli22.0 inch
azimio1680(RGB)×1050 , WSXGA+
hali ya kuonyeshaTN, Normally White, Transmissive
eneo la kazi473.76×296.1 mm
muhtasari493.7×320.1 mm
usoGlare (Haze 0%), Hard coating (2H), Antireflection
mwangaza400 cd/m² (Typ.)
uwiano wa utofautishaji1000:1 (Typ.)
kuonyesha rangi16.7M , CIE193172%
wakati wa majibu5 (Typ.)(Tr+Td)
angle ya kutazama80/80/80/80 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taa4 pcsCCFLWithout Driver
kiolesura cha isharaLVDS (2 ch, 8-bit), 30 pins
voltage ya pembejeo5.0V (Typ.)
maombiDMPC
