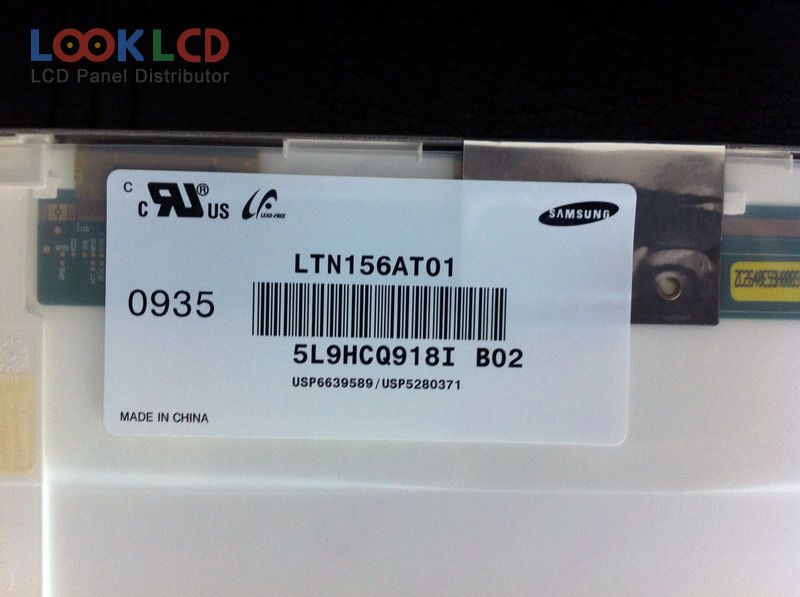

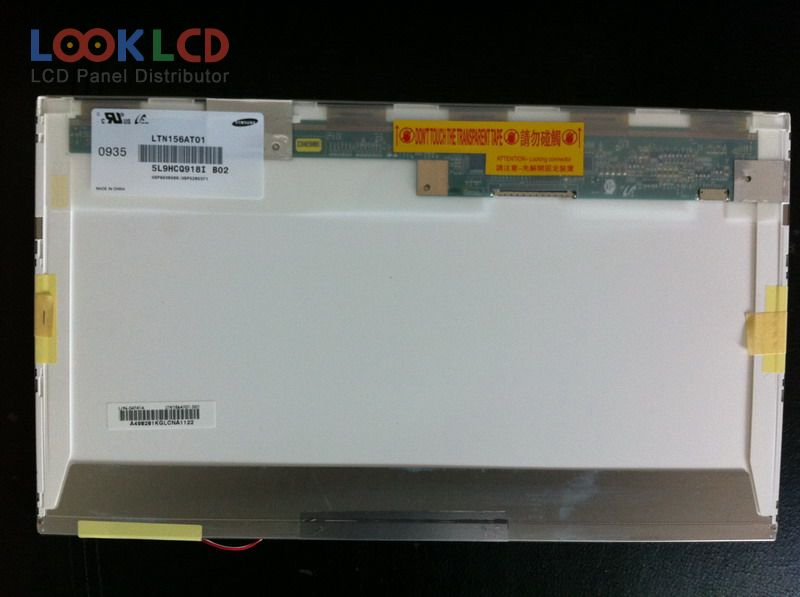

| Nambari ya Sehemu | LTN156AT01-B02 |
| Chapa | Samsung |
| Ukubwa | 15.6 |
| Maombi | NBPC |
| Azimio | 1366×768 |
| Muundo | LCM |
| Mwangaza | 220 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | SAMSUNG |
| mfano wa paneli | LTN156AT01-B02 10 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 15.6 inch |
| azimio | 1366(RGB)×768 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 344.232×193.536 mm |
| muhtasari | 359.3×209.5×6.2 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Glare (Haze 0%), Hard coating (3H) |
| mwangaza | 220 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193160% |
| wakati wa majibu | 25/35 (Typ./Max.)(Tr+Td) |
| angle ya kutazama | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 30 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NBPC |
| LTN156AT01-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-H01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D03 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-701 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT09-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT17-103 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-W02 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W02 | Samsung | 15.6 | 1366×768 |
| B141PW03 V1 | AUO | 14.1 | 1440×900 |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| LP116WH6-SLA1 | LG Display | 11.6 | 1366×768 |
| LP141WX1-TL02 | LG Display | 14.1 | 1280×800 |
| LQ089B1LS11 | SHARP | 8.9 | 1280×600 |
| LTN125AT03-803 | Samsung | 12.5 | 1366×768 |
| LTN140AT02-C02 | Samsung | 14.0 | 1366×768 |
| LTN141AT16-B03 | Samsung | 14.1 | 1280×800 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
