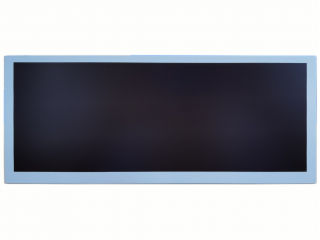

| Nambari ya Sehemu | M102AWF2 R2 |
| Chapa | IVO |
| Ukubwa | 10.3 |
| Maombi | Automotive Display |
| Azimio | 1920×720 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 8S3P |
| Kiolesura | LVDS |
| chapa ya paneli | IVO |
| mfano wa paneli | M102AWF2 R2 |
| saizi ya paneli | 10.3" |
| aina ya paneli | a-Si TFT-LCD, LCM |
| azimio | 1920(RGB)×720, 200PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 243.65(W)×91.37(H) mm |
| ufunguzi wa bezel | 245.65(W)×93.66(H) mm |
| saizi ya muhtasari | 262.04(W)×110.3(H) ×16(D) mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 800 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya kuonyesha | IPS, Normally Black, Transmissive |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | 20 (Typ.)(Tr+Td) |
| kuonyesha rangi | 16.7M 75% NTSC |
| aina ya taa | 8S3P WLED , 10K hours , Without Driver |
| masafa | 60Hz |
| skrini ya kugusa | Without |
| uzito wa paneli | 380g (Max.) |
| maombi | Automotive Display |
| kiolesura cha ishara | LVDS (2 ch, 8-bit) , 50 pins Connector |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
