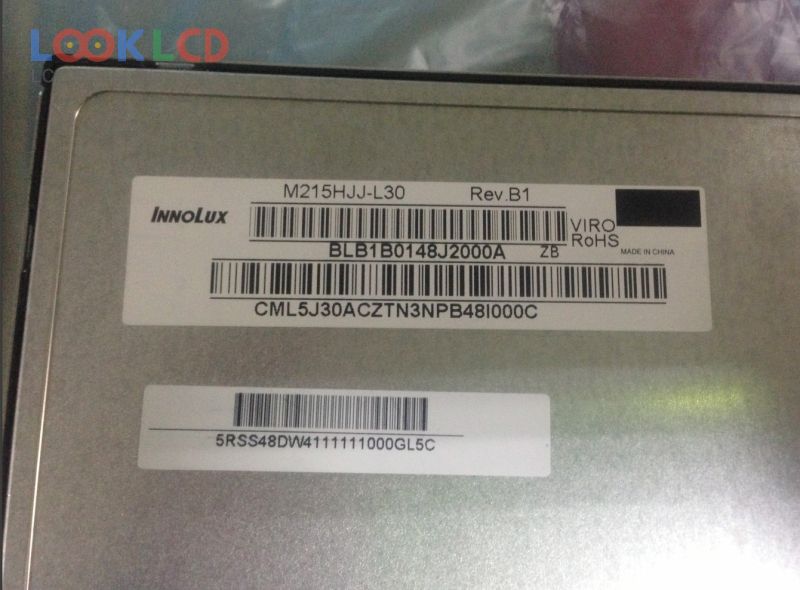

M215HJJ-L30 Rev.B1

M215HJJ-L30 Rev.B1
M215HJJ-L30 Rev.B1 thumb
Chapa
Innolux
Ukubwa
21.5
Maombi
DMPC
Azimio
1920×1080
Muundo
LCM
Mwangaza
250
CR
3000:1
Rangi
16.7M
Mwangaza nyuma
WLED
Kiolesura
LVDS
In Stock
12300
Vipimo

Nambari ya Sehemu M215HJJ-L30 Rev.B1
ChapaInnolux
Ukubwa21.5
MaombiDMPC
Azimio1920×1080
MuundoLCM
Mwangaza250
CR3000:1
Rangi16.7M
Mwangaza nyumaWLED
KiolesuraLVDS
chapa ya paneliINNOLUX
mfano wa paneliM215HJJ-L30 Rev.B1
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli21.5 inch
azimio1920(RGB)×1080 , FHD
hali ya kuonyeshaMVA, Normally Black, Transmissive
eneo la kazi476.064×267.786 mm
muhtasari495.6×292.2×11.5 mm
usoAntiglare (Haze 25%), Hard coating (3H)
mwangaza250 cd/m² (Typ.)
uwiano wa utofautishaji3000:1 (Typ.)
kuonyesha rangi16.7M (8-bit), CIE193172%
wakati wa majibu15/5 (Typ.)(Tr/Td)
angle ya kutazama88/88/88/88 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taa4 stringsWLEDWithout Driver
kiolesura cha isharaLVDS (2 ch, 8-bit), 30 pins
voltage ya pembejeo5.0V (Typ.)
maombiDMPC
