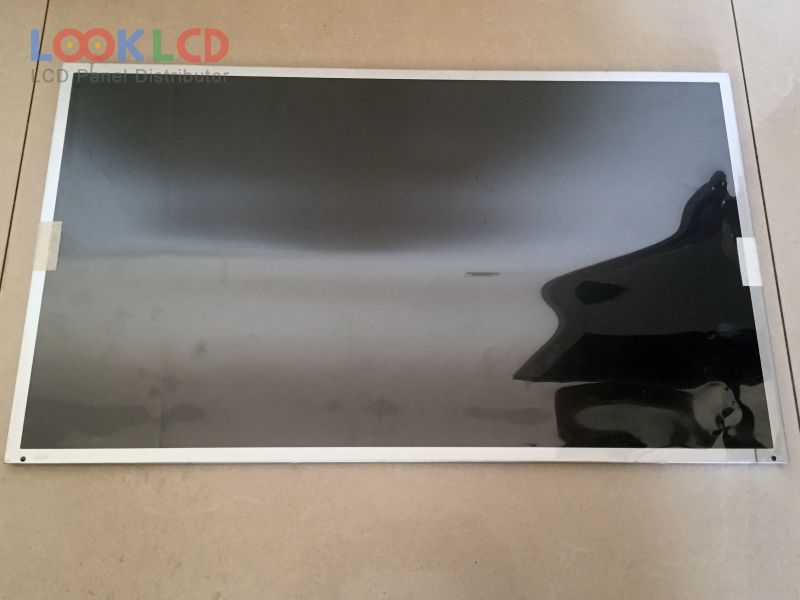

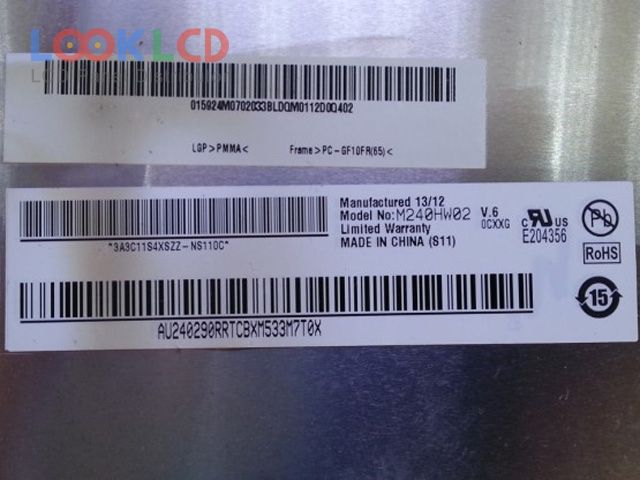

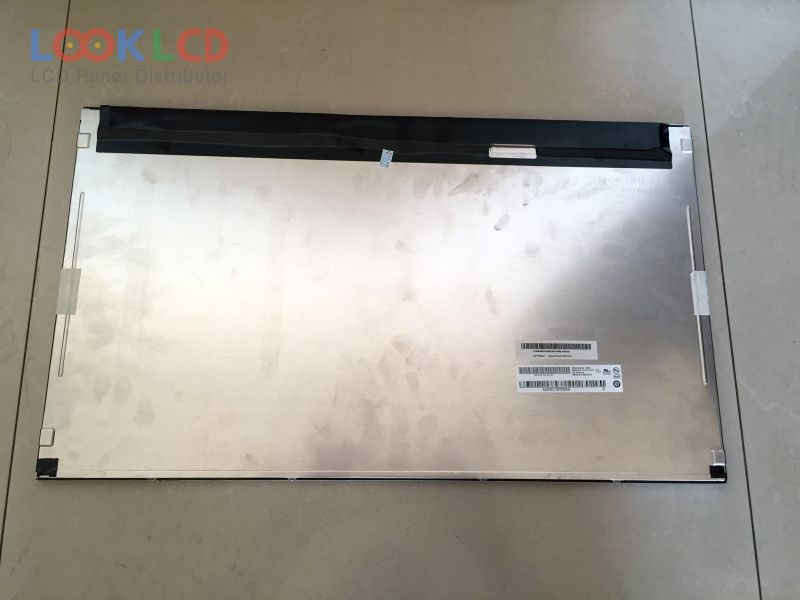

M240HW02 V6

M240HW02 V6
M240HW02 V6
M240HW02 V6
M240HW02 V6 thumb M240HW02 V6 thumb M240HW02 V6 thumb
Chapa
AUO
Ukubwa
24.0
Maombi
DMPC
Azimio
1920×1080
Muundo
LCM
Mwangaza
250
CR
5000:1
Rangi
16.7M
Mwangaza nyuma
WLED
Kiolesura
LVDS
In Stock
273
Vipimo

Nambari ya Sehemu M240HW02 V6
ChapaAUO
Ukubwa24.0
MaombiDMPC
Azimio1920×1080
MuundoLCM
Mwangaza250
CR5000:1
Rangi16.7M
Mwangaza nyumaWLED
KiolesuraLVDS
chapa ya paneliAUO
mfano wa paneliM240HW02 V6
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli24.0 inch
azimio1920(RGB)×1080 , FHD
hali ya kuonyeshaVA, Normally Black, Transmissive
eneo la kazi531.36×298.89 mm
muhtasari556×323.2×12 mm
usoAntiglare, Hard coating (3H)
mwangaza250 cd/m² (Typ.)
uwiano wa utofautishaji5000:1 (Typ.)
kuonyesha rangi16.7M (8-bit), CIE193172%
wakati wa majibu7/5 (Typ.)(Tr/Td)
angle ya kutazama89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taa14S4PWLEDWithout Driver
kiolesura cha isharaLVDS (2 ch, 8-bit), 30 pins
voltage ya pembejeo5.0V (Typ.)
maombiDMPC
Mfano wa Familia
M240HTD01.0 AUO 24.0 1920×1080
M240HTN01.1 AUO 24.0 1920×1080
M240HTN01.2 AUO 24.0 1920×1080
M240HVN01.0 AUO 24.0 1920×1080
M240HW01 V0 AUO 24.0 1920×1080
M240HW01 V2 AUO 24.0 1920×1080
M240HW01 V8 AUO 24.0 1920×1080
M240HW01 VB AUO 24.0 1920×1080
M240HW01 VC AUO 24.0 1920×1080
M240HW02 V7 AUO 24.0 1920×1080
