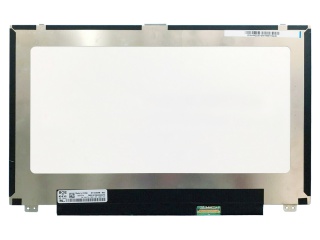

| Nambari ya Sehemu | NT125WHM-N42 |
| Chapa | BOE |
| Ukubwa | 12.5 |
| Maombi | Laptop |
| Azimio | 1366×768 |
| Muundo | LCM, a-Si TFT-LCD |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | 9S3P |
| Kiolesura | eDP |
| mtengenezaji | BOE |
| jina la mfano | NT125WHM-N42 (BOE06C8) |
| ukubwa wa skrini | 12.5 inch |
| aina ya skrini | LCM, a-Si TFT-LCD |
| nambari ya pixel | 1366(RGB)×768 (WXGA) 125PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 276.615 × 155.52 (H×V) |
| muhtasari(mm) | 290.5 × 180.9 × 3 (H×V×D) |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500 : 1 (Typ.) (TM) |
| angle ya kutazama | 45/45/20/40 (Typ.)(CR≥10) |
| majibu | 8 (Typ.)(Tr+Td) ms |
| mtazamo mzuri | 6 o'clock |
| hali ya kazi | TN, Normally White, Transmissive |
| kina cha rangi | 262K 45% NTSC |
| backlight | 9S3P WLED , 15K hours , With LED Driver |
| umbo la muhtasari | Slim (PCBA Flat, T≤3.2mm) |
| kutumika kwa | Laptop |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | eDP (2 Lanes) , eDP1.2 , Connector 40 pins |
| usambazaji wa voltage | 3.3V (Typ.) |
| max. ukadiriaji | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B125HAN01.0 | AUO | 12.5 | 1920×1080 |
| B125HAN02.2 | AUO | 12.5 | 1920×1080 |
| B125XW01 V0 | AUO | 12.5 | 1366×768 |
| HB125WX1-200 | BOE | 12.5 | 1366×768 |
| LP125WH2-SLT1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SLT2 | LG Display | 12.5 | 1366×768 |
| LP125WH2-TLE1 | LG Display | 12.5 | 1366×768 |
| M125NWN1 R0 | IVO | 12.5 | 1366×768 |
| N125HCE-GN1 | Innolux | 12.5 | 1920×1080 |
| NV125QUM-N81 | BOE | 12.5 | 3840×2160 |
