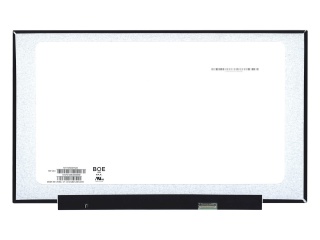

| Nambari ya Sehemu | NT173WDM-N25 |
| Chapa | BOE |
| Ukubwa | 17.3 |
| Maombi | Laptop |
| Azimio | 1600×900 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | 10S5P |
| Kiolesura | eDP |
| chapa ya paneli | BOE |
| mfano wa paneli | NT173WDM-N25 (BOE0954) |
| saizi ya paneli | 17.3" |
| aina ya paneli | a-Si TFT-LCD, LCM |
| azimio | 1600(RGB)×900, HD+, 106PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 382.08(W)×214.92(H) mm |
| ufunguzi wa bezel | - |
| saizi ya muhtasari | 389.88(W)×236.52(H) ×3.5(D) mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) (TM) |
| angle ya kutazama | 45/45/20/40 (Min.)(CR≥10) |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| mwonekano bora zaidi | 6 o'clock |
| wakati wa majibu | 12 (Typ.)(Tr+Td) |
| kuonyesha rangi | 262K 60% NTSC |
| aina ya taa | 10S5P WLED , 15K hours , With LED Driver |
| masafa | 60Hz |
| skrini ya kugusa | Without |
| mtindo wa sura | Flat (PCBA Flat, T3.4~4.0mm) |
| maombi | Laptop |
| kiolesura cha ishara | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
