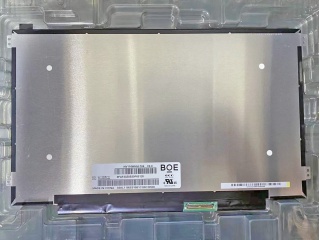

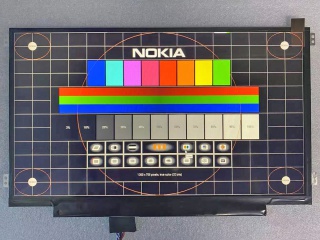

| Nambari ya Sehemu | NV116WHM-T04 |
| Chapa | BOE |
| Ukubwa | 11.6 |
| Maombi | Laptop |
| Azimio | 1366×768 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 262K |
| Mwangaza nyuma | 8S3P |
| Kiolesura | eDP |
| chapa ya paneli | BOE |
| mfano wa paneli | NV116WHM-T04 (BOE0965) |
| saizi ya paneli | 11.6" |
| aina ya paneli | a-Si TFT-LCD, LCM |
| azimio | 1366(RGB)×768, WXGA, 135PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 256.125(W)×144(H) mm |
| ufunguzi wa bezel | - |
| saizi ya muhtasari | 278(W)×168(H) ×3.2(D) mm |
| uso | Glare (Haze 0%), Hard coating (3H) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | 20 (Typ.)(Tr+Td) |
| kuonyesha rangi | 262K 50% NTSC |
| aina ya taa | 8S3P WLED , 15K hours , With LED Driver |
| masafa | 60Hz |
| skrini ya kugusa | On-Cell Touch |
| mtindo wa sura | Slim (PCBA Flat, T≤3.2mm) |
| maombi | Laptop |
| kiolesura cha ishara | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B116HAN03.1 | AUO | 11.6 | 1920×1080 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XW05 V004 | AUO | 11.6 | 1366×768 |
| LP116WH2-TLN1 | LG Display | 11.6 | 1366×768 |
| LP116WH4-SLN1 | LG Display | 11.6 | 1366×768 |
| LP116WH6-SLA1 | LG Display | 11.6 | 1366×768 |
| LTN116AT02-D01 | Samsung | 11.6 | 1366×768 |
| LTN116AT06-L02 | Samsung | 11.6 | 1366×768 |
| M116NWR1 R3 | IVO | 11.6 | 1366×768 |
| N116HSE-EA2 | Innolux | 11.6 | 1920×1080 |
