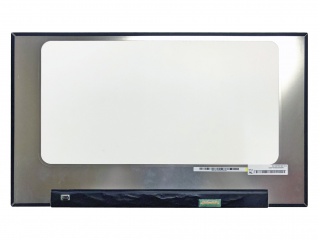

| Nambari ya Sehemu | NV156FHM-N63 |
| Chapa | BOE |
| Ukubwa | 15.6 |
| Maombi | Laptop |
| Azimio | 1920×1080 |
| Muundo | LCM, a-Si TFT-LCD |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 262K |
| Mwangaza nyuma | 11S4P |
| Kiolesura | eDP |
| mtengenezaji | BOE |
| jina la mfano | NV156FHM-N63 (BOE07D8) 4 Compatible |
| ukubwa wa skrini | 15.6 inch |
| aina ya skrini | LCM, a-Si TFT-LCD |
| nambari ya pixel | 1920(RGB)×1080 (FHD) 141PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 344.16 × 193.59 (H×V) |
| muhtasari(mm) | 350.46 × 206.25 × 4.6 (H×V×D) |
| eneo la bezel(mm) | - |
| matibabu | Antiglare |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800 : 1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| majibu | 30 (Typ.)(Tr+Td) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | HADS, Normally Black, Transmissive |
| kina cha rangi | 262K 72% NTSC |
| backlight | 11S4P WLED , 15K hours , With LED Driver |
| umbo la muhtasari | Slim (PCBA Bent, T≤3.0mm) |
| kutumika kwa | Laptop |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| usambazaji wa voltage | 3.3V (Typ.) |
| max. ukadiriaji | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
