Other OEL9M1004-L4-E hifadhidata, vipimo, hisa, programu www.looklcd-mk.com
LookLCD LookLCD

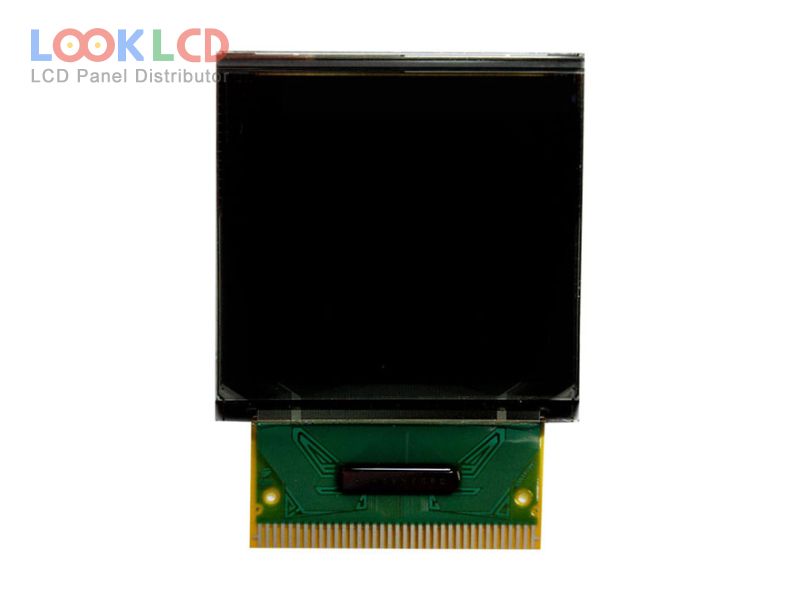

OEL9M1004-L4-E

OEL9M1004-L4-E
OEL9M1004-L4-E thumb
Chapa
Other
Ukubwa
1.5
Maombi
SW
Azimio
128×128
Muundo
OLED
Mwangaza
80
CR
5000:1
Rangi
262K
Mwangaza nyuma
self
Kiolesura
CPU/SPI
In Stock
2176
Vipimo

Nambari ya Sehemu OEL9M1004-L4-E
ChapaOther
Ukubwa1.5
MaombiSW
Azimio128×128
MuundoOLED
Mwangaza80
CR5000:1
Rangi262K
Mwangaza nyumaself
KiolesuraCPU/SPI
chapa ya paneliTRULY
mfano wa paneliOEL9M1004-L4-E
aina ya paneli PM-OLED , OLED
saizi ya paneli1.5 inch
azimio128(RGB)×128
eneo la kazi27.23×27.23 mm
muhtasari35.5×34.6×1.55 mm
uso
mwangaza80 cd/m² (Typ.)
uwiano wa utofautishaji5000 : 1 (Min.)
kuonyesha rangi262K (6-bit), CIE193160%
angle ya kutazama85/85/85/85 (Min.)(L/R/U/D)
masafa100Hz
dereva icCOF Built-in SSD1355U8R1
kiolesura cha ishara8/16/18-bit 6800/8080 parallel, 3/4-wire SPI, 37 pins
maombiSW
Mfano wa Familia
OEL9M1003-L3-E Other 1.1 96×96
OEL9M1004-L4-E Other 1.5 128×128
OEL9M1007-B-E Other 1.1 96×96
OEL9M1007-G-E Other 1.1 96×96
OEL9M1007-R-E Other 1.1 96×96
OEL9M1007-Y-E Other 1.1 96×96
OEL9M1010-B-E Other 0.95 96×64
OEL9M1010-G-E Other 0.95 96×64
OEL9M1010-W-E Other 0.95 96×64
OEL9M1010-Y-E Other 0.95 96×64
