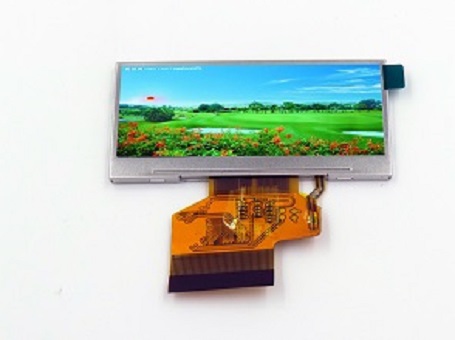

| Nambari ya Sehemu | S029Q03 |
| Chapa | CDTECH |
| Ukubwa | 2.9 |
| Maombi | Stretched Bar LCD |
| Azimio | 320×120 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 400:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | 8/9/16/18-bit |
| chapa | CDTECH |
| mfano | S029Q03 |
| ukubwa wa diagonal | 2.9 inch (1/2 cut of 3.5") |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 320(RGB)×120 115PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 70.08(H)×26.284(V) mm |
| muhtasari dim. | 76.9(H)×37.72(V) ×3.46(D) mm |
| eneo la bezel | 72.68(H)×28.88(V) mm |
| matibabu | - |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) (TM) |
| tazama mwelekeo | 12 o'clock |
| wakati wa majibu | 8/17 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/55/65 (Typ.)(CR≥10) |
| hali ya uendeshaji | TN, Normally White, Transmissive |
| rangi ya msaada | 262K 61% NTSC |
| chanzo cha mwanga | WLED [6S1P] , 30K hours , W/O Driver |
| uzito | TBD |
| iliyoundwa kwa ajili ya | Stretched Bar LCD |
| kiwango cha fremu | - |
| jopo la kugusa | Without |
| aina ya kiolesura | 8/9/16/18-bit 6800/8080 parallel, 6/9/16/18-bit RGB, SPI , 54 pins FPC |
| usambazaji wa nguvu | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| mazingira | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
