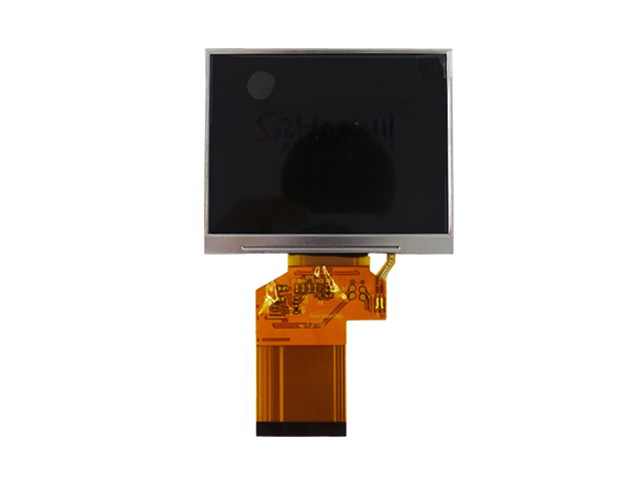

| Nambari ya Sehemu | S035LQNC111 |
| Chapa | CDTECH |
| Ukubwa | 3.5 |
| Maombi | Automotive Display I |
| Azimio | 320×240 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 350:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | Parallel |
| chapa | CDTECH |
| ukubwa wa diagonal | 3.5 inch |
| muundo wa pixel | 320(RGB)×240 [QVGA] 115PPI |
| eneo la kazi | 70.08(H)×52.56(V) mm |
| eneo la bezel | 71.3(H)×55.5(V) mm |
| mwangaza | 350 cd/m² (Typ.) |
| tazama mwelekeo | 12 o'clock |
| angle ya kutazama | 65/65/65/55 (Typ.)(CR≥10) |
| rangi ya msaada | 16.7M 50% NTSC |
| uzito | TBD |
| kiwango cha fremu | 60Hz |
| aina ya kiolesura | Parallel RGB (1 ch, 8-bit) + SPI , 54 pins FPC |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| mfano | S035LQNC111 2 Compatible |
| aina | a-Si TFT-LCD , LCM |
| usanidi | RGB Vertical Stripe |
| muhtasari dim. | 76.9(H)×63.9(V) ×3.46(D) mm |
| matibabu | Hard coating |
| uwiano wa utofautishaji | 350:1 (Typ.) (TM) |
| wakati wa majibu | 25/25 (Typ.)(Tr/Td) |
| hali ya uendeshaji | TN, Normally White, Transmissive |
| chanzo cha mwanga | WLED [6S1P] , 25K hours , W/O Driver |
| iliyoundwa kwa ajili ya | Automotive Display Industrial Handheld & PDA |
| jopo la kugusa | Without |
| EL160.80.50 IN LC CC | Lumineq | 3.5 | 160×80 |
| H347QN02 V0 | AUO | 3.5 | 320×480 |
| LH350WS1-SD02 | LG Display | 3.5 | 640×960 |
| LH350WV2-SH02 | LG Display | 3.5 | 480×800 |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
| UMSH-8065MD-11T | Other | 3.5 | 320×240 |
