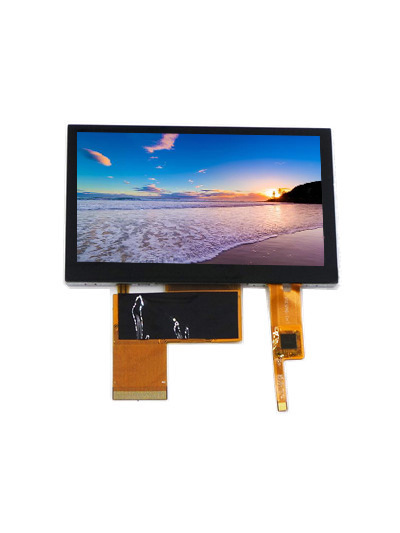

| Nambari ya Sehemu | S043WQ07H-CT6 |
| Chapa | CDTECH |
| Ukubwa | 4.3 |
| Maombi | Automotive Display I |
| Azimio | 480×272 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 5S2P |
| Kiolesura | Parallel |
| chapa ya paneli | CDTECH |
| saizi ya paneli | 4.3" |
| azimio | 480(RGB)×272, WQVGA, 128PPI |
| eneo la maonyesho | 95.04(W)×53.856(H) mm |
| saizi ya muhtasari | 105.5(W)×67.2(H) ×4.51(D) mm |
| mwangaza | 450 cd/m² (Typ.) |
| angle ya kutazama | 65/65/55/65 (Typ.)(CR≥10) |
| mwonekano bora zaidi | 6 o'clock |
| kuonyesha rangi | 16.7M 50% NTSC |
| masafa | 60Hz |
| uzito wa paneli | TBD |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| mfano wa paneli | S043WQ07H-CT6 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | 97.84(W)×56.66(H) mm |
| uso | Antiglare, Hard coating (6H) |
| uwiano wa utofautishaji | 500:1 (Typ.) (TM) |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| wakati wa majibu | 10/15 (Typ.)(Tr/Td) |
| aina ya taa | 5S2P WLED , 25K hours , Without Driver |
| skrini ya kugusa | PCAP |
| maombi | Automotive Display Industrial |
| AA043MA01 | Mitsubishi | 4.3 | 800×480 |
| AM480272H3TMQW-W2H | AMPIRE | 4.3 | 480×272 |
| AMS427GL45-0 | Samsung | 4.3 | 480×800 |
| BT043NHME601 | BOE | 4.3 | 360×600 |
| C043GW01 V0 | AUO | 4.3 | 400×234 |
| DLC0430LZG | Other | 4.3 | 480×272 |
| DLC0430LZG-8 | Other | 4.3 | 480×272 |
| DLC0430NZG-T-1 | Other | 4.3 | 480×272 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
| LTE430WQ-F07 | Samsung | 4.3 | 480×272 |
