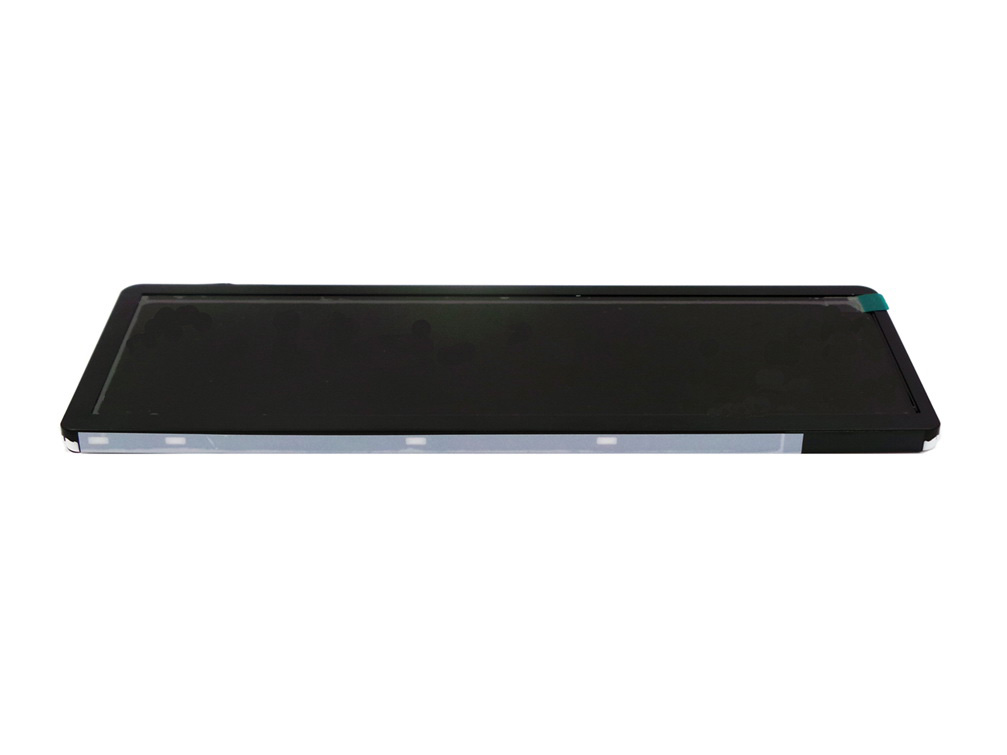

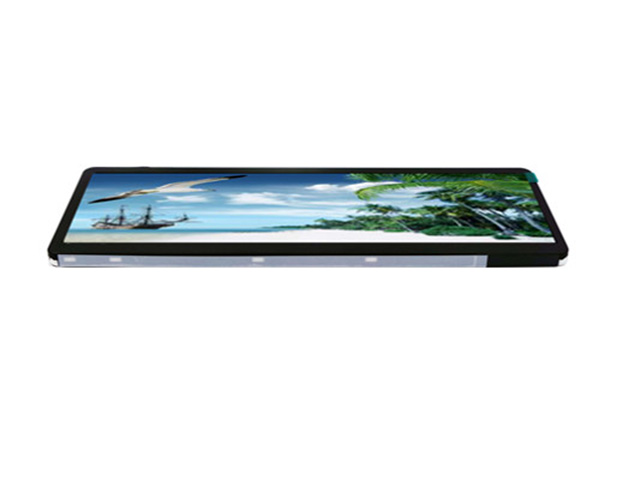

| Nambari ya Sehemu | S072WX02 |
| Chapa | CDTECH |
| Ukubwa | 7.2 |
| Maombi | Automotive Display I |
| Azimio | 1280×370 |
| Muundo | LCM , a-Si TFT-LCD |
| Mwangaza | |
| CR | 400:1 |
| Rangi | 262K |
| Mwangaza nyuma | 5S6P |
| Kiolesura | Parallel |
| mtengenezaji | CDTECH |
| jina la mfano | S072WX02 |
| ukubwa wa skrini | 7.2 inch (1/2 cut of 8.0") |
| aina ya skrini | LCM , a-Si TFT-LCD |
| nambari ya pixel | 1280(RGB)×370 187PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 173.76 × 50.23 (H×V) |
| muhtasari(mm) | 186.18 × 67.35 (H×V×D) |
| eneo la bezel(mm) | 177.16 × 55.53 (H×V) |
| matibabu | - |
| mwangaza | 1000 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400 : 1 (Typ.) (TM) |
| angle ya kutazama | 65/65/55/65 (Typ.)(CR≥10) |
| majibu | 25/25 (Typ.)(Tr/Td) ms |
| mtazamo mzuri | 12 o'clock |
| hali ya kazi | TN, Normally White, Transmissive |
| kina cha rangi | 262K 51% NTSC |
| backlight | 5S6P WLED , 30K hours , No Driver |
| wingi | TBD |
| kutumika kwa | Automotive Display Industrial Outdoor High Brightness Stretched Bar LCD |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| usambazaji wa voltage | 3.3/12.63/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| max. ukadiriaji | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
