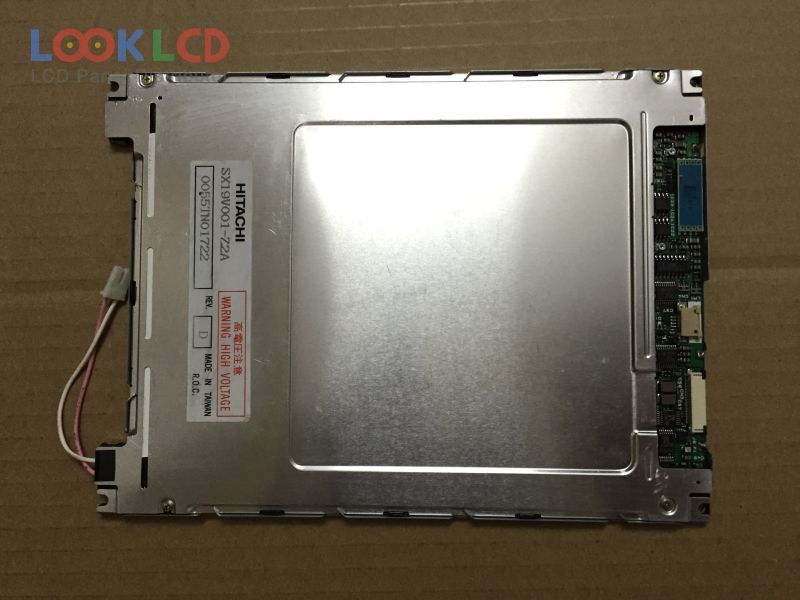

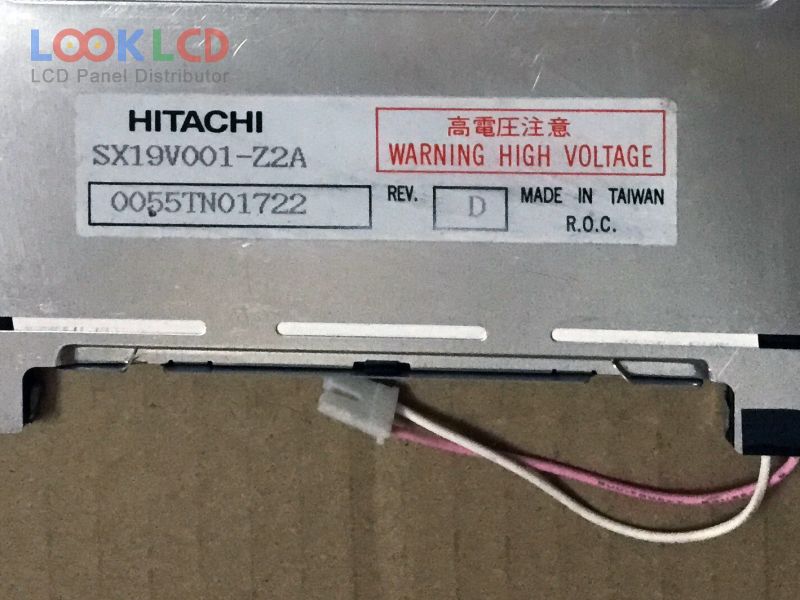

| Nambari ya Sehemu | SX19V001-Z2A |
| Chapa | KOE |
| Ukubwa | 7.5 |
| Maombi | IA |
| Azimio | 640×480 |
| Muundo | LCM |
| Mwangaza | |
| CR | 30:1 |
| Rangi | Color |
| Mwangaza nyuma | CCFL |
| Kiolesura | Parallel Data |
| chapa ya paneli | HITACHI |
| mfano wa paneli | SX19V001-Z2A |
| aina ya paneli | CSTN-LCD , LCM |
| saizi ya paneli | 7.5 inch |
| azimio | 640(RGB)×480 , VGA |
| hali ya kuonyesha | STN, Normally Black, Transmissive |
| eneo la kazi | 151.68×113.76 mm |
| muhtasari | 197×145 mm |
| uso | |
| mwangaza | |
| uwiano wa utofautishaji | 30:1 (Typ.) |
| kuonyesha rangi | Color |
| wakati wa majibu | 220/180 (Typ.)(Tr/Td) |
| angle ya kutazama | 40 (Typ.)(CR≥2, Φ2-Φ1)(L/R/U/D) |
| masafa | 100Hz |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel Data (8-bit), 28 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| COM70T7M17ZLC | ORTUSTECH | 7.0 | 800×480 |
| ET057010DMU | EDT | 5.7 | 640×480 |
| G150XGE-L04 Rev.C4 | Innolux | 15.0 | 1024×768 |
| G158ETN01.0 | AUO | 15.8 | |
| G240HW01 V0 | AUO | 24.0 | 1920×1080 |
| KCB6448BSTT-X4 | Kyocera | 10.4 | 640×480 |
| NL10276BC30-18 | NLT | 15.0 | 1024×768 |
| NLB150XG01L-01 | NLT | 15.0 | 1024×768 |
| TS104SAALC01-00 | Tianma | 10.4 | 800×600 |
| UG-5664ALBDF01 | WiseChip | 2.8 | 256×64 |
